RHOSP13实验手册

第一章 红帽Openstack平台架构

第一节 介绍

• 课程中使用power节点模拟虚拟机电源管理。
• power节点中CLI接口，创建虚拟主板管理控制器（BMC），通过hypervisor来使用IPMI协议管理每个RHOSP虚拟机，以模拟裸机管理方式。
• 每台虚拟机都需要一个虚拟BMC，各自在 623 端口上监听power 节点的 BMC 配置，如下所示：

[root@power ~]# netstat -tulnp | grep 623
udp        0      0 172.25.249.112:623      0.0.0.0:*                           1259/python
udp        0      0 172.25.249.106:623      0.0.0.0:*                           1246/python
udp        0      0 172.25.249.103:623      0.0.0.0:*                           1233/python
udp        0      0 172.25.249.102:623      0.0.0.0:*                           1220/python
udp        0      0 172.25.249.101:623      0.0.0.0:*                           1204/python
[root@power ~]# cat /etc/bmc/vms
# List the VMs that the fake ipmi will manage. Include in the list one
# VM name per line along with the proxy IP the IPMI client (ipmitool)
# will use to manage it.
#
# EXAMPLE: VM_NAME,IP_ADDRESS
controller0,172.25.249.101
compute0,172.25.249.102
ceph0,172.25.249.103
computehci0,172.25.249.106
compute1,172.25.249.112
#远程控制开关机
(undercloud) [stack@director ~]$ ipmitool -I lanplus -U admin -P password -H 172.25.249.112 power on

查看undercloud的部署镜像

(undercloud) [stack@director ~]$ openstack image list
+--------------------------------------+------------------------+--------+
| ID                                   | Name                   | Status |
+--------------------------------------+------------------------+--------+
| fab32297-d1e2-4598-9e4e-6b02c8982c6f | bm-deploy-kernel       | active |
| bc8408a7-3074-4c56-8992-a56637f561e0 | bm-deploy-ramdisk      | active |
| ff82c9a3-eead-489f-a862-ca7b2b245a60 | overcloud-full         | active |
| 86901767-c252-4711-867e-a06eb52b4bfc | overcloud-full-initrd  | active |
| 4b823922-4757-468f-aad4-1e7bf0f585fa | overcloud-full-vmlinuz | active |
+--------------------------------------+------------------------+--------+

• bm-deploy-kernel和bm-deploy-ramdisk 是用来引导操作系统启动的镜像，overcloud中的服务器 第一次启动就会使用这两个镜像，做服务器体检，获得服务器的信息，交给ironic服务的数据库，然后将服务器关机。
• 系统第二次启动会使用overcloud-full-initrd 和overcloud-full-vmlinuz，将服务器再次启动。
• 服务器启动后，在硬盘上注入overcloud-full这个镜像，然后根据ks脚本将服务器部署成为是控制节点还是计算节点。overcloud-full镜像不仅包含了系统，还包含了ceph和openstack所有的软件包，根据heat编排，将各节点部署成为各个角色。

第二节 OpenStack 服务组件通信故障排除方法

1. 通过查看 Keystone 日志文件定位故障：/var/log/contaners/keystone/keystone.log
2. 通过查看 RabbitMQ 消息代理定位故障（oslo）
3. 通过查看各服务的 API 日志信息定位故障：/var/log/containers//api.log
4. 通过查看各服务组件的日志信息定位故障

openstack catalog service_name --debug
#举例：
openstack catalog nova --debug
openstack catalog show nova --debug

第二章 描述openstack控制平面

第一节 RabbitMQ消息队列

rabbitmqctl 命令：因为 OpenStack 已经容器化运行，所有的RabbitMQ命令必须在容器内部运行典型rabbitmqctl 命令使用如下：

rabbitmqctl report：查看 RabbitMQ 守护进程的当前状态，包括 Exchange 与 Queue 的类型
及数量
rabbitmqctl list_users：列出 RabbitMQ 用户
rabbitmqctl list_user_permissions guest 列出guest用户的权限
rabbitmqctl list_exchanges：列出 RabbitMQ 守护进程的默认配置的 Exchange
rabbitmqctl list_queues：列出可用的队列及其属性
rabbitmqctl list_consumers：列出所有的消费者及它们订阅的队列

追踪RabbitMQ消息，跟踪会增加系统负载，因此请确保在调查完成后禁⽤跟踪：

rabbitmqctl trace_on：启用追踪
rabbitmqctl trace_off：禁用追踪

查看容器中rabbitmq的相关信息

[root@controller0 ~]# docker ps | grep rabbit
[root@controller0 ~]# docker container exec rabbitmq-bundle-docker-0 rabbitmqctl report
[root@controller0 ~]# docker container exec rabbitmq-bundle-docker-0 rabbitmqctl list_users
[root@controller0 ~]# docker container exec rabbitmq-bundle-docker-0 rabbitmqctl list_exchanges
[root@controller0 ~]# docker container exec rabbitmq-bundle-docker-0 rabbitmqctl list_queues
[root@controller0 ~]# docker container exec rabbitmq-bundle-docker-0 rabbitmqctl list_consumers

练习：开启容器中RabbitMQ的追踪服务

准备工作

[student@workstation ~]$ lab controlplane-message setup

[root@controller0 ~]# docker exec -t rabbitmq-bundle-docker-0 rabbitmqctl --help
[root@controller0 ~]# docker exec -t rabbitmq-bundle-docker-0 rabbitmqctl --help | grep add
#创建用户并赋权
[root@controller0 ~]# docker exec -t rabbitmq-bundle-docker-0 rabbitmqctl add_user user1 redhat
[root@controller0 ~]# docker exec -t rabbitmq-bundle-docker-0 rabbitmqctl set_permissions user1 ".*" ".*" ".*"
()[root@controller0 /]# rabbitmqctl set_user_tags user1 administrator
#开启追踪功能
[root@controller0 ~]# docker exec -t rabbitmq-bundle-docker-0 rabbitmqctl trace_on
#查看rabbitmq服务监听在5672端口
[root@controller0 ~]# ss -tulnp | grep :5672
#测试追踪服务
[root@controller0 ~]# ./rmq_trace.py -u user1 -p redhat -t 172.24.1.1 > /tmp/rabbit.user
[student@workstation ~]$ source developer1-finance-rc
[student@workstation ~(developer1-finance)]$ openstack server create --image rhel7 --flavor default --security-group default --key-name example-keypair --nic net-id=finance-network1 finance-server2 --wait
#关闭追踪功能
[root@controller0 ~]# docker exec -t rabbitmq-bundle-docker-0 rabbitmqctl trace_off
#清空环境
[student@workstation ~]$ lab controlplane-message cleanup
#说明：
设置用户对何种资源具有配置、写、读的权限通过正则表达式来匹配，这里的资源指的是virtual hosts中的exchanges、queues等，操作包括对资源进行配置、写、读。配置权限可创建、删除、资源并修改资源的行为，写权限可向资源发送消息，读权限从资源获取消息。
如'^(amq\.gen.*|amq\.default)$'可以匹配server生成的和默认的exchange，'^$'不匹配任何资源。
set_permissions [-p <vhostpath>] <user> <conf> <write> <read>

第二节 控制节点的服务

初始化环境

[student@workstation ~]$ lab controlplane-services setup

练习：访问mysql数据库服务

[root@controller0 ~]# docker ps | grep galera
a193b9433e43        172.25.249.200:8787/rhosp13/openstack-mariadb:pcmklatest               "/bin/bash /usr/lo..."   12 minutes ago      Up 12 minutes                                       galera-bundle-docker-0
[root@controller0 ~]# docker exec -t galera-bundle-docker-0 mysql -u root -e "show databases"
[root@controller0 ~]# docker exec -it galera-bundle-docker-0 /bin/bash
()[root@controller0 /]# mysql -u root
MariaDB [(none)]> use keystone;
MariaDB [keystone]> show tables;
MariaDB [keystone]> select * from role;

查找mysql数据库密码

[root@controller0 ~]# cd /var/lib/config-data/puppet-generated/mysql/root/
[root@controller0 root]# ls -a
.  ..  .my.cnf
[root@controller0 root]# vim .my.cnf
[root@controller0 root]# cat .my.cnf
[client]
user=root
password="dgMgg8QfNM"

[mysql]
user=root
password="dgMgg8QfNM"
[root@controller0 root]# ss -tnlp | grep 3306
LISTEN     0      128    172.24.1.1:3306                     *:*                   users:(("mysqld",pid=15486,fd=30))
LISTEN     0      128    172.24.1.50:3306                     *:*                   users:(("haproxy",pid=14658,fd=26))
#用password="dgMgg8QfNM"登录数据库
[root@controller0 ~]# mysql -uroot -pdgMgg8QfNM -h172.24.1.1
MariaDB [(none)]> show databases;

练习：查询redis数据库的密码并登录

#查看容器的信息
[root@controller0 ~]# docker inspect redis-bundle-docker-0
[root@controller0 ~]# grep -i pass /var/lib/config-data/puppet-generated/redis/etc/redis.conf
或者
[root@controller0 root]# netstat -tulnp | grep redis
tcp        0      0 172.24.1.1:6379         0.0.0.0:*               LISTEN      16412/redis-server
[root@controller0 ~]# redis-cli -h 172.24.1.1
172.24.1.1:6379> AUTH wuTuATnYuMrzJQGj8KxBb6ZAW
OK
172.24.1.1:6379> KEYS *
 1) "_tooz_beats:b05174d4-374f-4aaf-9e73-8f6157782b60"
 2) "_tooz_beats:273ca97b-a442-49e1-bead-f31b5666df42"
 3) "_tooz_beats:controller0.0.f6f98884-e9a9-457b-80dc-c46626c8d991"
 4) "_tooz_group:alarm_evaluator"
 5) "_tooz_beats:controller0.0.861c98f2-96fc-4afe-8e89-f1317c9d04f7"
 6) "_tooz_group:compute-computehci0.overcloud.example.com"
 7) "_tooz_beats:controller0.0.177a2c8d-6cc4-4bb9-ba0f-8b6d5e9ca3dc"
 8) "_tooz_beats:4b27447e-a926-4361-912d-1e4fd7765e00"
 9) "_tooz_beats:2f21f9f6-8954-4340-8b93-cf58b9c5015d"
10) "_tooz_beats:c0a3ae04-a617-4a0f-8c61-181f3cfb2551"
11) "_tooz_group:compute-compute0.overcloud.example.com"
12) "_tooz_beats:525147c1-767c-43f4-9adf-a3da092fe497"
13) "_tooz_beats:2a1a6744-4217-4db6-91f1-ca03780e5655"
14) "_tooz_beats:8f983ebd-1639-4126-b4cc-183efb7ee03b"
15) "_tooz_groups"
16) "_tooz_group:compute-compute1.overcloud.example.com"
17) "gnocchi-config"
18) "_tooz_group:central-global"
19) "_tooz_group:gnocchi-processing"
20) "_tooz_beats:4d102120-2c84-4b9a-b263-7da6c243c621"
21) "_tooz_beats:eb8bc300-5348-4c11-aa3f-b8a7c7304ac9"
22) "_tooz_beats:controller0.0.175fc0dd-4598-46f5-9e88-cf7cf75f2364"
172.24.1.1:6379> type gnocchi-config
hash
172.24.1.1:6379> type _tooz_beats:b05174d4-374f-4aaf-9e73-8f6157782b60
string

查看集群

[root@controller0 ~]# pcs resource show
[root@controller0 ~]# pcs resource disable openstack-manila-share
[root@controller0 ~]# pcs resource enable openstack-manila-share

练习：查看vnc登录的地址

[student@workstation ~]$ source developer1-finance-rc
[student@workstation ~(developer1-finance)]$ openstack console url show finance-server3
+-------+------------------------------------------------------------------------------------+
| Field | Value                                                                              |
+-------+------------------------------------------------------------------------------------+
| type  | novnc                                                                              |
| url   | http://172.25.250.50:6080/vnc_auto.html?token=3f09227e-d49d-41b2-98ed-d61eda6296e5 |
+-------+------------------------------------------------------------------------------------+
#在控制节点上看监听端口
[root@controller0 ~]# netstat -tulnp | grep 6080
[root@foundation0 ~]# firefox http://172.25.250.50:6080/vnc_auto.html?token=3f09227e-d49d-41b2-98ed-d61eda6296e5

清空环境

[student@workstation ~]$ lab controlplane-services cleanup

第三章 身份认证管理

第一节 管理集成的 IdM 后端配置

#管理员身份查看用户和域信息
(undercloud) [stack@director ~]$ source overcloudrc
(overcloud) [stack@director ~]$ openstack domain list
(overcloud) [stack@director ~]$ openstack user list --domain Example
#查看用户在当前域的token信息
[student@workstation ~]$ source developer1-finance-rc
[student@workstation ~(developer1-finance)]$ openstack token issue

练习：配置dashboard可以登录其他域的用户

1. 配置Horizon控制面板

• 默认情况下，身份认证服务使用default域

• 集成外部认证后端时需要单独创建后端的认证域

• 集成IdM认证后端时，需要在控制节点Horizon控制面板中启用multidomain支持特性

  如下所示：

[root@controller0 ~]# vim /var/lib/config-data/puppetgenerated/horizon/etc/openstack-dashboard/local_settings
OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True
[root@controller0 ~]# docker restart horizon

2. 配置身份认证服务：

• 编辑Keystone配置文件使dashboard控制面板支持multidomain特性

​ 如下所示：

[root@controller0 ~]# vim /var/lib/configdata/puppetgenerated/keystone/etc/keystone/keystone.conf
[identity]
domain_specific_drivers_enabled = true
[root@controller0 ~]# docker restart keystone

第二节 管理身份服务令牌

练习：轮转key

参考文档链接：http://content.example.com/rhosp13.0/x86_64/dvd/docs/html/

#查看轮转前
[root@controller0 ~]# ls /var/lib/config-data/puppet-generated/keystone/etc/keystone/fernet-keys/
0  1
#轮转可以
[stack@director ~]$ source ~/stackrc
(undercloud) [stack@director ~]$ openstack workflow execution create tripleo.fernet_keys.v1.rotate_fernet_keys '{"container": "overcloud"}'
(undercloud) [stack@director ~]$ openstack workflow execution show 7cea4168-d91f-456c-8d9c-2d9bb1200260
#查看轮转后
[root@controller0 ~]# ls /var/lib/config-data/puppet-generated/keystone/etc/keystone/fernet-keys/
0  1  2

第三节 管理项目组织

域 Domain：

• Keystone v3（Identity Service v3）的新特性
• 域包含用户、组与项目
• RHOSP 初始安装了 Default 域

$ openstack domain create <domain>：创建额外的域
$ openstack domain list：列出已有的域

用户 User：

• 管理员应该保留 Default 域用于服务账户的使用
• 管理员可以创建新的域，并加入用户

$ openstack user create <user> --domain <domain> --password-prompt

说明

指定域添加新的用户，不指定 --domain 选项时，默认为 Default domain；不建议命令行中指定密码，存在安全风险，建议交互式输入密码。

组 Group：

• Keystone v3 还引入了组的概念
• 组有利于批量管理用户访问资源
• 管理员可以对组执行单一操作，并将其作用分发给组中的所有成员

$ openstack group create <group> --domain <domain> #指定域创建组
$ openstack group add user --group-domain <group_domain> --user-domain <user_domain> <group> <user> #将域中的用户添加到域中的组中

项目 Project：

• Keystone v3 引入，用户不再包含于项目中，而是包含于域中，因此用户可从属于多个项目

$ openstack project create <project> --domain <domain> #指定域创建项目

角色管理：

• 身份认证服务使用基于角色的访问控制（RBAC）来认证授权用户访问 OpenStack
• 管理员可为用户与组分配角色来授权访问域与项目

$ openstack role add --domain Example --user admin admin
#为 Default 域中的 admin 用户授予 Example 域的 admin 角色
$ openstack role add --project research --project-domain Example --group developers --group-domain Lab _member_
#为 Lab 域的 developers 组授予 Example 域中 research 项⽬的_member_ 角色

用户存放在IDM中

[root@foundation0 ~]# ssh utility
[student@utility ~]$ kinit admin
Password for admin@LAB.EXAMPLE.NET: RedHat123^
[student@utility ~]$ ipa user-find | grep User
User login: admin
User login: architect1
User login: architect2
User login: architect3
……
[student@utility ~]$ ipa group-find | grep Group
Group name: admins
Group name: consulting-admins
Group name: consulting-members
Group name: consulting-swiftoperators
Group name: editors
……

练习：配置用户并赋予角色

• 创建 OpenStack 域 210Demo，其中包含 Engineering 与 Production项目
• 在域 210Demo 中创建 OpenStack 组 Devops，其中需包含以下用户：
  • a. Robert 用户是 Engineering 项目的用户与管理员，email 地址为： Robert@lab.example.com。
  • b. George 用户是 Engineering 项目的用户，email 地址为：George@lab.example.com。
  • c. William 用户是 Production 项目的用户与管理员，email 地址为： William@lab.example.com。
  • d. John 用户是 Production 项目的用户，email 地址为：John@lab.example.com。 所有用户账户的密码都是 redhat

登录

[root@foundation0 ~]# ssh stack@director
(undercloud) [stack@director ~]$ source overcloudrc

创建域

(overcloud) [stack@director ~]$ openstack domain create 210Demo

创建项目

(overcloud) [stack@director ~]$ openstack project create Engineering --domain 210Demo
(overcloud) [stack@director ~]$ openstack project create Production --domain 210Demo

创建组

(overcloud) [stack@director ~]$ openstack group create Devops --domain 210Demo

创建用户

(overcloud) [stack@director ~]$ openstack user create Robert --domain 210Demo --password redhat --project Engineering --project-domain 210Demo --email Robert@lab.example.com
(overcloud) [stack@director ~]$ openstack user create George --domain 210Demo --password redhat --project Engineering --project-domain 210Demo --email George@lab.example.com
(overcloud) [stack@director ~]$ openstack user create William --domain 210Demo --password redhat --project Production --project
-domain 210Demo --email William@lab.example.com
(overcloud) [stack@director ~]$ openstack user create John --domain 210Demo --password redhat --project Production --project-domain 210Demo --email John@lab.example.com

给用户赋予角色

(overcloud) [stack@director ~]$ openstack role add --user Robert --user-domain 210Demo --project Engineering --project-domain 210Demo admin
(overcloud) [stack@director ~]$ openstack role add --user Robert --user-domain 210Demo --project Engineering --project-domain 210Demo _member_
(overcloud) [stack@director ~]$ openstack role add --user George --user-domain 210Demo --project Engineering --project-domain 210Demo _member_
(overcloud) [stack@director ~]$ openstack role add --user William --user-domain 210Demo --project Production --project-domain 210Demo admin
(overcloud) [stack@director ~]$ openstack role add --user William --user-domain 210Demo --project Production --project-domain 210Demo _member_
(overcloud) [stack@director ~]$ openstack role add --user John --user-domain 210Demo --project Production --project-domain 210Demo _member_

#验证
(overcloud) [stack@director ~]$ openstack role assignment list --user Robert --user-domain 210Demo --project Engineering --project-domain 210Demo --names
+----------+----------------+-------+---------------------+--------+-----------+
| Role     | User           | Group | Project             | Domain | Inherited |
+----------+----------------+-------+---------------------+--------+-----------+
| admin    | Robert@210Demo |       | Engineering@210Demo |        | False     |
| _member_ | Robert@210Demo |       | Engineering@210Demo |        | False     |
+----------+----------------+-------+---------------------+--------+-----------+
(overcloud) [stack@director ~]$ openstack role assignment list --user George --user-domain 210Demo --project Engineering --project-domain 210Demo --names
+----------+----------------+-------+---------------------+--------+-----------+
| Role     | User           | Group | Project             | Domain | Inherited |
+----------+----------------+-------+---------------------+--------+-----------+
| _member_ | George@210Demo |       | Engineering@210Demo |        | False     |
+----------+----------------+-------+---------------------+--------+-----------+
(overcloud) [stack@director ~]$ openstack role assignment list --user William --user-domain 210Demo --project Production --project-domain 210Demo --names
+----------+-----------------+-------+--------------------+--------+-----------+
| Role     | User            | Group | Project            | Domain | Inherited |
+----------+-----------------+-------+--------------------+--------+-----------+
| admin    | William@210Demo |       | Production@210Demo |        | False     |
| _member_ | William@210Demo |       | Production@210Demo |        | False     |
+----------+-----------------+-------+--------------------+--------+-----------+
(overcloud) [stack@director ~]$ openstack role assignment list --user John --user-domain 210Demo --project Production --project-domain 210Demo --names
+----------+--------------+-------+--------------------+--------+-----------+
| Role     | User         | Group | Project            | Domain | Inherited |
+----------+--------------+-------+--------------------+--------+-----------+
| _member_ | John@210Demo |       | Production@210Demo |        | False     |
+----------+--------------+-------+--------------------+--------+-----------+

添加用户到组

(overcloud) [stack@director ~]$ openstack group add user --group-domain 210Demo --user-domain 210Demo Devops Robert
(overcloud) [stack@director ~]$ openstack group add user --group-domain 210Demo --user-domain 210Demo Devops George
(overcloud) [stack@director ~]$ openstack group add user --group-domain 210Demo --user-domain 210Demo Devops William
(overcloud) [stack@director ~]$ openstack group add user --group-domain 210Demo --user-domain 210Demo Devops John

给组添加角色

(overcloud) [stack@director ~]$ openstack role add --group Devops --group-domain 210Demo --project Engineering --project-domain 210Demo admin
(overcloud) [stack@director ~]$ openstack role add --group Devops --group-domain 210Demo --project Engineering --project-domain 210Demo _member_
(overcloud) [stack@director ~]$ openstack role add --group Devops --group-domain 210Demo --project Production --project-domain 210Demo admin
(overcloud) [stack@director ~]$ openstack role add --group Devops --group-domain 210Demo --project Production --project-domain 210Demo _member_

第四章 镜像管理

第一节 比较镜像格式

1. raw

raw格式是最简单，什么都没有，所以叫raw格式。连头文件都没有，就是一个直接给虚拟机进行读写的文件。raw不支持动态增长空间，必须一开始就指定空间大小。所以相当的耗费磁盘空间。但是对于支持稀疏文件的文件系统（如ext4）而言，这方面并不突出。ext4下默认创建的文件就是稀疏文件，所以不要做什么额外的工作。

du -sh 文件名

用du可以查看文件的实际大小。也就是说，不管磁盘空间有多大，运行下面的指令没有任何问题：

raw镜像格式是虚拟机中I/O性能最好的一种格式，大家在使用时都会和raw进行参照，性能越接近raw 的越好。但是raw没有任何其他功能。对于稀疏文件的出现，像qcow这一类的运行时分配空间的镜像就 没有任何优势了。

2. qcow

qcow在cow的基础上增加了动态增加文件大小的功能，并且支持加密，压缩。qcow通过2级索引表来管理整个镜像的空间分配，其中第二级的索引用了内存cache技术，需要查找动作，这方面导致性能的损失。qcow现在基本不用，一方面其优化和功能没有qcow2好，另一方面，读写性能又没有cow和raw好。

3. qcow2

qcow2是集各种技术为一体的超级镜像格式，支持内部快照，加密，压缩等一系列功能，访问性能也在不断提高。但qcow2的问题就是过于臃肿，把什么功能都集于一身。

镜像文件管理

#创建镜像
[root@compute0 ~]# qemu-img create -f qcow2 disk01.qcow2 10G
Formatting 'disk01.qcow2', fmt=qcow2 size=10737418240 cluster_size=65536 lazy_refcounts=off refcount_bits=16
[root@compute0 ~]# qemu-img create -f raw disk02.raw 10G
Formatting 'disk02.raw', fmt=raw size=10737418240
#查看镜像
[root@compute0 ~]# qemu-img info disk01.qcow2
image: disk01.qcow2
file format: qcow2
virtual size: 10G (10737418240 bytes)
disk size: 196K
cluster_size: 65536
Format specific information:
    compat: 1.1
    lazy refcounts: false
    refcount bits: 16
    corrupt: false
[root@compute0 ~]# qemu-img info disk02.raw
image: disk02.raw
file format: raw
virtual size: 10G (10737418240 bytes)
disk size: 0
[root@compute0 ~]# ll -h
-rw-r--r--. 1 root root 193K Jun 26 11:11 disk01.qcow2
-rw-r--r--. 1 root root  10G Jun 26 11:12 disk02.raw
#qcow2和raw格式之间进行转换
[root@compute0 ~]# qemu-img convert -f qcow2 -O raw disk01.qcow2 disk01.raw
[root@compute0 ~]# ll -h
-rw-r--r--. 1 root root 193K Jun 26 11:11 disk01.qcow2
-rw-r--r--. 1 root root  10G Jun 26 11:16 disk01.raw
-rw-r--r--. 1 root root  10G Jun 26 11:12 disk02.raw

第二节 修改客户机和磁盘镜像

练习：guestfish自定义镜像

初始化环境

[student@workstation ~]$ lab customization-img-customizing setup

下载镜像

[student@workstation ~(developer1-finance)]$  wget http://materials.example.com/osp-small.qcow2 -O ~/finance-rhel-db.qcow2

编辑镜像

[student@workstation ~(developer1-finance)]$  guestfish -i --network -a ~/finance-rhel-db.qcow2
#选项说明: -i 自动挂载分区；--network 启用网络；-a 添加磁盘镜像
><fs> command "yum -y install httpd"
><fs> command "systemctl enable httpd"
><fs>  command "systemctl start httpd"
><fs> touch /var/www/html/index.html
><fs> vi /var/www/html/index.html
><fs> command "useradd test"
><fs> selinux-relabel /etc/selinux/targeted/contexts/files/file_contexts /
><fs> exit
[student@workstation ~(developer1-finance)]$ source developer1-finance-rc
#上传镜像
[student@workstation ~(developer1-finance)]$ openstack image create --disk-format qcow2 --min-disk 10 --min-ram 2048 --file ~/finance-rhel-db.qcow2 finance-rhel-db

发放云主机

#发送云主机
[student@workstation ~(developer1-finance)]$ openstack server create --flavor default --key-name example-keypair --nic net-id=finance-network1 --security-group finance-db --image finance-rhel-db --wait finance-db1
#绑定浮动ip
[student@workstation ~(developer1-finance)]$ openstack floating ip list
[student@workstation ~(developer1-finance)]$ openstack server add floating ip finance-db1 172.25.250.110
#登录云主机
[student@workstation ~(developer1-finance)]$ ssh cloud-user@172.25.250.110
Warning: Permanently added '172.25.250.110' (ECDSA) to the list of known hosts.
[cloud-user@finance-db1 ~]$
#在安全组规则中放心80端口
[student@workstation ~(developer1-finance)]$ curl 172.25.250.110

清除环境

[student@workstation ~]$ lab customization-img-customizing cleanup

第三节 部署期间初始化实例

练习：cloud-init自定义创建的实例

初始化环境

[student@workstation ~]$ lab customization-img-cloudinit setup

下载镜像

[student@workstation ~(developer1-finance)]$ wget http://materials.example.com/osp-small.qcow2 -O ~/cloud-init

编辑镜像

[student@workstation ~(developer1-finance)]$  source developer1-finance-rc
#上传镜像
[student@workstation ~(developer1-finance)]$ openstack image create --disk-format qcow2 --min-disk 10 --min-ram 2048 --file cloud-init cloud-init
#发送云主机
[student@workstation ~(developer1-finance)]$ vim user-data
#!/bin/bash
yum -y install httpd
systemctl enable httpd
systemctl start httpd
echo hello delbert > /var/www/html/index.html
[student@workstation ~(developer1-finance)]$ openstack server create --flavor default --key-name example-keypair --nic net-id=finance-network1 --security-group default --image cloud-init --user-data ~/user-data --wait cloud-init
#浮动ip
[student@workstation ~(developer1-finance)]$ openstack floating ip list
[student@workstation ~(developer1-finance)]$ openstack server add floating ip cloud-init 172.25.250.110
#登录云主机
[student@workstation ~(developer1-finance)]$ ssh cloud-user@172.25.250.110
#在安全组规则中放行80端口
[student@workstation ~(developer1-finance)]$ curl 172.25.250.110

清除环境

[student@workstation ~]$ lab customization-img-cloudinit cleanup

第五章 存储管理

第一节 实施块存储

查看ceph节点的osd信息

[root@ceph0 ~]# docker ps | grep osd
e40a31cb9b3a        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest    "/entrypoint.sh"    57 minutes ago      Up 57 minutes                           ceph-osd-ceph0-vdb
c99645015af3        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest    "/entrypoint.sh"    57 minutes ago      Up 57 minutes                           ceph-osd-ceph0-vdd
89d4aa639ddf        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest    "/entrypoint.sh"    57 minutes ago      Up 57 minutes                           ceph-osd-ceph0-vdc
[root@ceph0 ~]# lsblk
NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sr0     11:0    1  738K  0 rom
vda    252:0    0   40G  0 disk
├─vda1 252:1    0    1M  0 part
└─vda2 252:2    0   40G  0 part /
vdb    252:16   0   20G  0 disk
├─vdb1 252:17   0   19G  0 part
└─vdb2 252:18   0    1G  0 part #日志区：用于高速缓存
vdc    252:32   0   20G  0 disk
├─vdc1 252:33   0   19G  0 part
└─vdc2 252:34   0    1G  0 part #日志区：用于高速缓存
vdd    252:48   0   20G  0 disk
├─vdd1 252:49   0   19G  0 part
└─vdd2 252:50   0    1G  0 part #日志区：用于高速缓存

查看控制节点运行的ceph角色

[root@controller0 ~]# docker ps | grep ceph
764e05afea1c        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest                       "/entrypoint.sh"         58 minutes ago      Up 58 minutes                                       ceph-mds-controller0
fc4f33fe63a0        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest                       "/entrypoint.sh"         58 minutes ago      Up 58 minutes                                       ceph-mgr-controller0
25f52714cd63        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest                       "/entrypoint.sh"         58 minutes ago      Up 58 minutes                                       ceph-mon-controller0

查看存储池

[root@controller0 ~]# ceph osd pool ls
images			#给glance提供存储
metrics			#Ceilometer使用
backups			#nova使用，虚拟机备份
vms				#nova使用，虚拟机临时存储
volumes			#给cinder提供块存储
manila_data		#共享文件系统
manila_metadata

查看镜像

[root@controller0 ~]# rbd -p images ls
14b7e8b2-7c6d-4bcf-b159-1e4e7582107c
1964be99-7551-4048-bbdd-5c2764231cde
5f7f8208-33b5-4f17-8297-588f938182c0
6b0128a9-4481-4ceb-b34e-ffe92e0dcfdd
ec9473de-4048-4ebb-b08a-a9be619477ac
[student@workstation ~(developer1-finance)]$ openstack image list
+--------------------------------------+-----------------+--------+
| ID                                   | Name            | Status |
+--------------------------------------+-----------------+--------+
| 1964be99-7551-4048-bbdd-5c2764231cde | cloud-init      | active |
| ec9473de-4048-4ebb-b08a-a9be619477ac | octavia-amphora | active |
| 6b0128a9-4481-4ceb-b34e-ffe92e0dcfdd | rhel7           | active |
| 5f7f8208-33b5-4f17-8297-588f938182c0 | rhel7-db        | active |
| 14b7e8b2-7c6d-4bcf-b159-1e4e7582107c | rhel7-web       | active |
+--------------------------------------+-----------------+--------+

查看虚拟机

[root@controller0 ~]# rbd -p vms ls
6babf3b3-4d11-4572-ba78-b941b379ec38_disk
[student@workstation ~(developer1-finance)]$ openstack server list
+--------------------------------------+------------+--------+----------------------------------------------+------------+---------+
| ID                                   | Name       | Status | Networks                                     | Image      | Flavor  |
+--------------------------------------+------------+--------+----------------------------------------------+------------+---------+
| 6babf3b3-4d11-4572-ba78-b941b379ec38 | cloud-init | ACTIVE | finance-network1=192.168.1.9, 172.25.250.110 | cloud-init | default |
+--------------------------------------+------------+--------+----------------------------------------------+------------+---------+

rados命令查看对象

[root@controller0 ~]# rados -p vms ls | head
rbd_data.ae976b8b4567.00000000000003f8
rbd_data.ae976b8b4567.00000000000001f5
rbd_data.ae976b8b4567.0000000000000016
rbd_data.ae976b8b4567.0000000000000651
rbd_data.ae976b8b4567.000000000000064e
rbd_data.ae976b8b4567.000000000000023f
rbd_data.ae976b8b4567.00000000000005df
rbd_data.ae976b8b4567.0000000000000625
rbd_data.ae976b8b4567.00000000000005de
rbd_data.ae976b8b4567.0000000000000256

服务都是通过openstack用户访问ceph存储，查看openstack用户权限

[root@controller0 ~]# ceph auth get client.openstack
[client.openstack]
        key = AQAPHM9bAAAAABAA8DLv19H7QXzX0CnaTql/1w==
        caps mds = ""
        caps mgr = "allow *"
        caps mon = "profile rbd"
        caps osd = "profile rbd pool=volumes, profile rbd pool=backups, profile rbd pool=vms, profile rbd pool=images, profile rbd pool=metrics"
exported keyring for client.openstack

在控制节点查看cinder对接ceph的配置

[root@controller0 ~]# vim /var/lib/config-data/puppet-generated/cinder/etc/cinder/cinder.conf
[tripleo_ceph]
backend_host=hostgroup
volume_backend_name=tripleo_ceph
volume_driver=cinder.volume.drivers.rbd.RBDDriver
rbd_ceph_conf=/etc/ceph/ceph.conf
rbd_user=openstack
rbd_pool=volumes

在控制节点查看glance对接ceph的配置

[root@controller0 ~]# vim /var/lib/config-data/puppet-generated/glance_api/etc/glance/glance-api.conf
[glance_store]
stores=http,rbd
default_store=rbd
rbd_store_pool=images
rbd_store_user=openstack
rbd_store_ceph_conf=/etc/ceph/ceph.conf
os_region_name=regionOne

在计算节点查看nova对接ceph的配置

[root@compute0 ~]# vim /var/lib/config-data/puppet-generated/nova_libvirt/etc/nova/nova.conf
[libvirt]
live_migration_uri=qemu+ssh://nova_migration@%s:2022/system?keyfile=/etc/nova/migration/identity
rbd_user=openstack
rbd_secret_uuid=fe8e3db0-d6c3-11e8-a76d-52540001fac8
images_type=rbd
images_rbd_pool=vms
images_rbd_ceph_conf=/etc/ceph/ceph.conf
virt_type=kvm
cpu_mode=none
inject_password=False
inject_key=False
inject_partition=-2
hw_disk_discard=unmap
enabled_perf_events=
disk_cachemodes=network=writeback
#libvirt与ceph对接组要密钥
[root@compute0 ~]# virsh secret-list
 UUID                                  Usage
--------------------------------------------------------------------------------
 fe8e3db0-d6c3-11e8-a76d-52540001fac8  ceph client.openstack secret

练习：管理cinder块存储

准备环境

[student@workstation ~]$ lab storage-backend setup

查看ceph集群状态

[student@workstation ~]$ ssh root@controller0
[root@controller0 ~]#  docker ps | grep ceph
764e05afea1c        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest                       "/entrypoint.sh"         About an hour ago   Up About an hour                                     ceph-mds-controller0
fc4f33fe63a0        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest                       "/entrypoint.sh"         About an hour ago   Up About an hour                                     ceph-mgr-controller0
25f52714cd63        172.25.249.200:8787/rhceph/rhceph-3-rhel7:latest                       "/entrypoint.sh"         About an hour ago   Up About an hour                                     ceph-mon-controller0
[root@controller0 ~]# ceph -s
  cluster:
    id:     fe8e3db0-d6c3-11e8-a76d-52540001fac8
    health: HEALTH_OK

  services:
    mon: 1 daemons, quorum controller0
    mgr: controller0(active)
    mds: cephfs-1/1/1 up  {0=controller0=up:active}
    osd: 6 osds: 6 up, 6 in

  data:
    pools:   7 pools, 416 pgs
    objects: 1434 objects, 9120 MB
    usage:   9759 MB used, 104 GB / 113 GB avail
    pgs:     416 active+clean

  io:
    client:   3155 B/s wr, 0 op/s rd, 0 op/s wr

[root@controller0 ~]# docker exec -it glance_api grep -iE 'rbd|ceph' /etc/glance/glance-api.conf | grep -v ^# | grep -v ^$
stores=http,rbd
default_store=rbd
rbd_store_pool=images
rbd_store_user=openstack
rbd_store_ceph_conf=/etc/ceph/ceph.conf
[root@controller0 ~]# docker exec -it cinder_api grep -Ei 'rbd|ceph' /etc/cinder/cinder.conf | grep -v ^#
enabled_backends=tripleo_ceph
[tripleo_ceph]
volume_backend_name=tripleo_ceph
volume_driver=cinder.volume.drivers.rbd.RBDDriver
rbd_ceph_conf=/etc/ceph/ceph.conf
rbd_user=openstack
rbd_pool=volumes
[root@controller0 ~]# ceph osd pool ls
images
metrics
backups
vms
volumes
manila_data
manila_metadata
[root@controller0 ~]# exit
logout

上传镜像到ceph存储

[student@workstation ~]$ source developer1-finance-rc
[student@workstation ~(developer1-finance)]$ wget http://materials.example.com/osp-small.qcow2
[student@workstation ~(developer1-finance)]$ openstack image create --disk-format qcow2 --file ~/osp-small.qcow2 finance-image
[student@workstation ~(developer1-finance)]$ openstack image list
+--------------------------------------+-----------------+--------+
| ID                                   | Name            | Status |
+--------------------------------------+-----------------+--------+
| 1964be99-7551-4048-bbdd-5c2764231cde | cloud-init      | active |
| cd3027b1-7fdb-4ce2-999a-200259350fe1 | finance-image   | active |
| ec9473de-4048-4ebb-b08a-a9be619477ac | octavia-amphora | active |
| 6b0128a9-4481-4ceb-b34e-ffe92e0dcfdd | rhel7           | active |
| 5f7f8208-33b5-4f17-8297-588f938182c0 | rhel7-db        | active |
| 14b7e8b2-7c6d-4bcf-b159-1e4e7582107c | rhel7-web       | active |
+--------------------------------------+-----------------+--------+
[root@controller0 ~]# rados -p image ls | grep cd3027b1-7fdb-4ce2-999a-200259350fe1

创建云主机和云硬盘，并将云硬盘挂在给云主机

[student@workstation ~(developer1-finance)]$ openstack server create --flavor default --image finance-image --nic net-id=finance-network1 --security-group default finance-server1
[student@workstation ~(developer1-finance)]$ openstack server list
[student@workstation ~(developer1-finance)]$ openstack volume create --size 1 finance-volume1
[student@workstation ~(developer1-finance)]$ openstack volume list
[student@workstation ~(developer1-finance)]$ openstack server add volume finance-server1 finance-volume1
[student@workstation ~(developer1-finance)]$ openstack volume list
+--------------------------------------+-----------------+--------+------+------------------------------------------+
| ID                                   | Name            | Status | Size | Attached to                              |
+--------------------------------------+-----------------+--------+------+------------------------------------------+
| 7caf5e6a-b7a1-4e0b-b63f-9d5000f02f7e | finance-volume1 | in-use |    1 | Attached to finance-server1 on /dev/vdb  |
+--------------------------------------+-----------------+--------+------+------------------------------------------+
[root@controller0 ~]# rados -p volumes ls
rbd_directory
rbd_info
rbd_header.b0d02b94f43e
rbd_id.volume-7caf5e6a-b7a1-4e0b-b63f-9d5000f02f7e
rbd_object_map.b0d02b94f43e

清除环境

[student@workstation ~]$ lab storage-backend cleanup

第二节 比较块存储

swift命令：

老版本 OpenStack 中的 swift post、swift list 和 swift stat 等命令仍然支持

新版本 OpenStack 中，使用 OpenStack 统一命令行工具管理

$ openstack container create <container_name>：创建容器
$ openstack container list：列出所有可用的容器
$ openstack container delete <container_name>：删除指定的容器
$ openstack container save <container_name>：下载/保存指定容器中的内容至本地
$ openstack object create <container_name> <object_name>：上传已存在的对象至指定容器中
$ openstack object list <container_name>：列出指定容器中的所有对象
$ openstack object delete <container_name> <object_name>：删除指定容器中的对象

第三节 manila共享文件系统

以管理员用户身份创建共享类型

$ manila type-create cephfstype false

说明

false 参数为 driver_handles_share_servers 参数的值，若开启动态扩展共享节点，该参数为 true

以租户用户身份创建共享

$ manila create --name demo-share --share-type cephfstype cephfs 1

说明

–share-type 选项基于后端存储对共享进行分类，并且该共享大小为1GB。 当共享可用时，启动虚拟机实例，单独连接 tenant 网络和存储网络（租户网络与存储网络需要隔离）

在 Ceph Monitor 节点上以 client.manila 用户进行身份认证来创建 cephx 用户，保存该用户的 secret key

$ ceph --name=client.manila --keyring=/etc/ceph/manila.keyring auth get-orcreata client.cloud-user > cloud-user.keyring
$ manila access-allow demo-share cephx cloud-user

追踪共享的导出路径

$ manila share-export-location-list demo-share --columns Path

练习：管理manila共享文件系统

初始化环境

[student@workstation ~]$ lab storage-manila setup

登录控制节点，确保manila服务运行

[root@controller0 ~]# docker ps | grep manila
86d61ab757fc        172.25.249.200:8787/rhosp13/openstack-manila-share:pcmklatest          "/bin/bash /usr/lo..."   About an hour ago   Up About an hour                                     openstack-manila-share-docker-0
f47af1e5d0c0        172.25.249.200:8787/rhosp13/openstack-manila-api:latest                "kolla_start"            19 months ago       Up About an hour                                     manila_api
d601bacac004        172.25.249.200:8787/rhosp13/openstack-manila-scheduler:latest          "kolla_start"            19 months ago       Up About an hour (healthy)                           manila_scheduler
You have mail in /var/spool/mail/root

查看manila对接ceph的配置

[root@controller0 manila]# vim /var/lib/config-data/puppetgenerated/manila/etc/manila/manila.conf
enabled_share_backends=cephfs
enabled_share_protocols=CEPHFS
[cephfs]
driver_handles_share_servers=False
share_backend_name=cephfs
share_driver=manila.share.drivers.cephfs.driver.CephFSDriver
cephfs_conf_path=/etc/ceph/ceph.conf
cephfs_auth_id=manila
cephfs_cluster_name=ceph
cephfs_enable_snapshots=False
cephfs_protocol_helper_type=CEPHFS
[root@controller0 manila]# exit

创建manila共享文件系统，并发放云主机

[student@workstation ~(developer1-finance)]$ cat manila/user-data.file
#!/bin/bash
cat > /etc/sysconfig/network-scripts/ifcfg-eth1 << eof
DEVICE=eth1
ONBOOT=yes
BOOTPROTO=dhcp
eof
ifup eth1
[student@workstation ~]$ source architect1-finance-rc
[student@workstation ~(architect1-finance)]$ manila service-list
+----+------------------+------------------+------+---------+-------+----------------------------+
| Id | Binary           | Host             | Zone | Status  | State | Updated_at                 |
+----+------------------+------------------+------+---------+-------+----------------------------+
| 1  | manila-scheduler | hostgroup        | nova | enabled | up    | 2020-05-31T17:57:18.000000 |
| 2  | manila-share     | hostgroup@cephfs | nova | enabled | up    | 2020-05-31T17:57:21.000000 |
+----+------------------+------------------+------+---------+-------+----------------------------+
[student@workstation ~(architect1-finance)]$ manila type-create cephfstype false
[student@workstation ~(architect1-finance)]$ source developer1-finance-rc
[student@workstation ~(developer1-finance)]$ manila create --name finance-share1 --share-type cephfstype cephfs 1
[student@workstation ~(developer1-finance)]$ manila list
+--------------------------------------+----------------+------+-------------+-----------+-----------+-----------------+------+-------------------+
| ID                                   | Name           | Size | Share Proto | Status    | Is Public | Share Type Name | Host | Availability Zone |
+--------------------------------------+----------------+------+-------------+-----------+-----------+-----------------+------+-------------------+
| fc5d9631-71a8-4a27-9a85-b7f0f93e7708 | finance-share1 | 1    | CEPHFS      | available | False     | cephfstype      |      | nova              |
+--------------------------------------+----------------+------+-------------+-----------+-----------+-----------------+------+-------------------+
[student@workstation ~(developer1-finance)]$ openstack server create --flavor default --image rhel7 --key-name example-keypair --nic net-id=finance-network1 --nic net-id=provider-storage --user-data /home/student/manila/user-data.file  finance-server1 --wait
#cloud=init 实现
[student@workstation ~(developer1-finance)]$ cat manila/user-data.file
#!/bin/bash
cat > /etc/sysconfig/network-scripts/ifcfg-eth1 << eof
DEVICE=eth1
ONBOOT=yes
BOOTPROTO=dhcp
eof
ifup eth1
#给云主机绑定浮动ip
[student@workstation ~(developer1-finance)]$ openstack server add floating ip finance-server1 172.25.250.102

用manila用户在ceph中创建cloud-user用户，用于访问ceph存储

[root@controller0 ~]# ceph auth get-or-create client.cloud-user --name=client.manila --keyring=/etc/ceph/ceph.client.manila.keyring > /root/cloud-user.keyring

复制ceph配置文件和cloud-user的密钥到云主机中

[root@controller0 ~]# scp cloud-user.keyring /etc/ceph/ceph.conf student@workstation:~
[student@workstation ~(developer1-finance)]$ scp ceph.conf cloud-user.keyring cloud-user@172.25.250.102:~

设置cloud-user用户可以访问manila共享文件系统

[student@workstation ~(developer1-finance)]$  manila access-allow finance-share1 cephx cloud-user
[student@workstation ~(developer1-finance)]$  manila access-list finance-share1
+--------------------------------------+-------------+------------+--------------+--------+------------------------------------------+----------------------------+----------------------------+
| id                                   | access_type | access_to  | access_level | state  | access_key                               | created_at                 | updated_at                 |
+--------------------------------------+-------------+------------+--------------+--------+------------------------------------------+----------------------------+----------------------------+
| 2e6ae095-1385-4627-9cf6-d1fa207f77b9 | cephx       | cloud-user | rw           | active | AQB58dNegxrMNhAA0rYfY6OtkvRhNcrbetTAjA== | 2020-05-31T18:14:50.000000 | 2020-05-31T18:14:50.000000 |
+--------------------------------------+-------------+------------+--------------+--------+------------------------------------------+----------------------------+----------------------------+

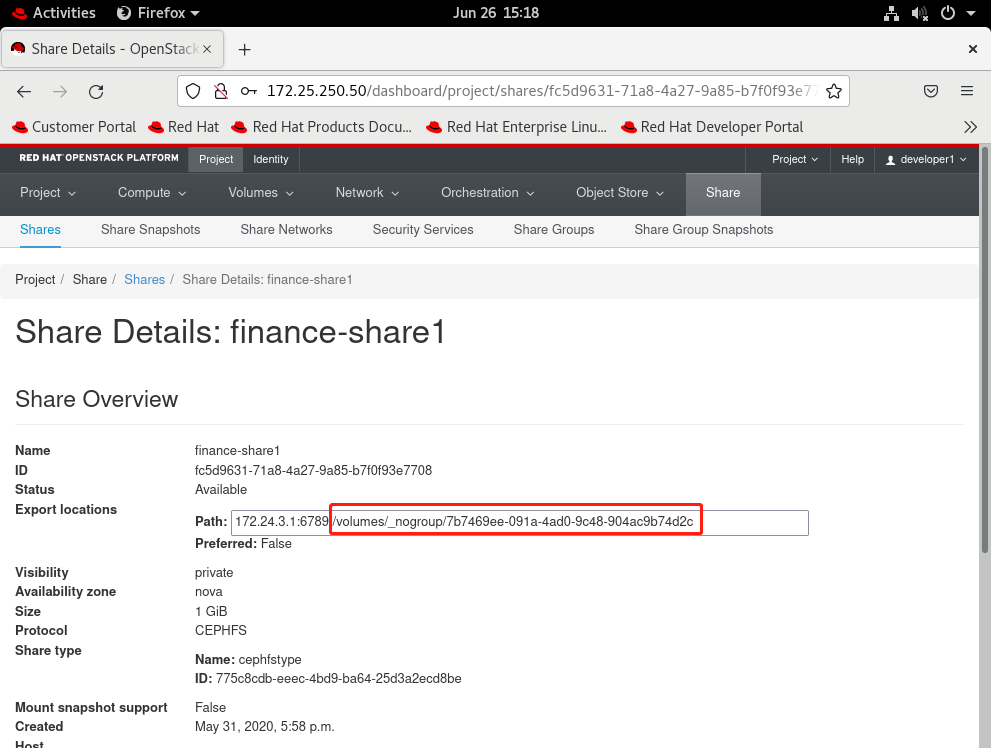

查看manila共享文件系统

[student@workstation ~(developer1-finance)]$ manila share-export-location-list finance-share1
+--------------------------------------+------------------------------------------------------------------------+-----------+
| ID                                   | Path                                                                   | Preferred |
+--------------------------------------+------------------------------------------------------------------------+-----------+
| 2d553e5a-f992-477c-93e3-908ee461ff42 | 172.24.3.1:6789:/volumes/_nogroup/7b7469ee-091a-4ad0-9c48-904ac9b74d2c | False     |
+--------------------------------------+------------------------------------------------------------------------+-----------+

登录云主机，安装驱动程序，挂载manila服务

[student@workstation ~(developer1-finance)]$ ssh cloud-user@172.25.250.102
[cloud-user@finance-server1 ~]$ su -
Password: redhat
[root@finance-server1 ~]# mkdir /mnt/ceph
[root@finance-server1 ~]# curl -s -f -o /etc/yum.repos.d/ceph.repo http://materials.example.com/ceph.repo
[root@finance-server1 ~]# yum -y install ceph-fuse
[root@finance-server1 ~]# mkdir -p /mnt/ceph
[root@finance-server1 ~]# ceph-fuse /mnt/ceph/ --id=cloud-user --conf=/home/cloud-user/ceph.conf --keyring=/home/cloud-user/cloud-user.keyring --client-mountpoint=/volumes/_nogroup/7b7469ee-091a-4ad0-9c48-904ac9b74d2c
[root@finance-server1 ~]# df -h /mnt/ceph
Filesystem      Size  Used Avail Use% Mounted on
ceph-fuse       1.0G     0  1.0G   0% /mnt/ceph
[root@finance-server1 ~]# echo hello > /mnt/ceph/hello.txt

清空环境

[student@workstation ~(developer1-finance)]$ openstack server delete finance-server1
[student@workstation ~(developer1-finance)]$ manila delete finance-share1
[student@workstation ~(developer1-finance)]$ source architect1-finance-rc
[student@workstation ~(architect1-finance)]$ manila type-delete cephfstype
[student@workstation ~(architect1-finance)]$ lab storage-manila cleanup

第四节 管理临时存储

临时与持久存储的区别

• 当租户用户使用镜像创建实例时，该实例具有的唯一的初始存储是临时存储（根磁盘）

  该临时存储是一种非常简单且易用的存储资源，但缺乏存储分层（tiering）和磁盘容量扩展等高级功能

• 存储在临时存储中的任何数据在实例终止后无法保留

• 临时存储的生命周期由 OpenStack Nova 计算服务管理

• 持久存储在其附加的实例终止之后依然存在

• 持久存储由 OpenStack Cinder、Swift 与 Manila 管理

临时存储与 Libvirt：

• Nova 计算服务使用 KVM 作为 Hypervisor 的原生 libvirt 虚拟化平台
• 实例作为 KVM 虚拟机存在，libvirtd 服务根据用户的指令对虚拟机执行操作
• flavor 决定每个实例的大小
• Nova 允许实例消耗来自 hypervisor 系统的计算和存储资源
• flavor 属性还包括 vCPU数量、内存量、交换内存量、实例的磁盘大小，以及实例的额外临时磁盘大小
• 作为 flavor 定义的一部分而创建的存储单元本质上都是临时存储
• 默认情况下，计算服务在计算节点上的 /var/lib/nova/instances/UUID/ 目录中创建代表临时存储文件
• 若 Ceph 用作 Nova 的后端存储，则后端对象存储在通常名为 vms 的 pool 中
• 请注意，将 Ceph 存储用作 OpenStack 计算服务的后端存储并不使临时存储转换为持久存储！
• 临时存储仍然会在实例删除时消失，无论它位于计算节点本地，还是来自 Ceph等外部后端存储

创建持久根磁盘（Root Disks）：

• 实例镜像的内容可以提取到持久卷

• 通过任何实例对根文件系统所做的任何更改都将一直存在，直到删除持久卷为止

  $ openstack volume create --size <volume_size> --image <image_name> <volume_name>

  例：$ openstack volume create --size 10 --image rhel7 demo-vol

• 创建名称为 demo-vol 的 volume，大小10GB，并将 rhel7 镜像根文件系统注入该 volume 中；使用 openstack server create 创建实例时，–volume 选项指定 volume 来启动实例

练习：管理临时存储

准备环境

[student@workstation ~(architect1-finance)]$ lab storage-compare setup

创建云主机

[student@workstation ~]$ source architect1-finance-rc
[student@workstation ~(architect1-finance)]$ openstack server create --flavor default --image rhel7 --nic net-id=finance-network1 --availability-zone nova:compute1.overcloud.example.com finance-server1
[student@workstation ~(architect1-finance)]$ openstack server list
[student@workstation ~(architect1-finance)]$ ssh root@controller0
Last login: Sun May 31 17:17:46 2020 from 172.25.250.254
[root@controller0 ~]# rados -p vms ls | grep 3dda1087-d6b8-4e5d-ad49-2dd6c055c225
rbd_id.3dda1087-d6b8-4e5d-ad49-2dd6c055c225_disk

删除云主机后，临时存储也被删除

[student@workstation ~(architect1-finance)]$ openstack server delete finance-server1
[student@workstation ~(architect1-finance)]$ ssh root@controller0
Last login: Sun May 31 18:58:25 2020 from 172.25.250.254
[root@controller0 ~]# rados -p vms ls | grep 3dda1087-d6b8-4e5d-ad49-2dd6c055c225

设置临时存储为计算节点的本地空间

[student@workstation ~]$ ssh root@compute1
[root@compute1 ~]# vim /var/lib/config-data/puppetgenerated/nova_libvirt/etc/nova/nova.conf
[libvirt]
#images_type=rbd
[root@compute1 ~]# docker restart nova_compute
[root@compute1 ~]# exit
[student@workstation ~]$ source architect1-finance-rc
[student@workstation ~(architect1-finance)]$ openstack server create --flavor default --image rhel7 --nic net-id=finance-network1 --availability-zone nova:compute1.overcloud.example.com finance-server1
[student@workstation ~(architect1-finance)]$ openstack server list
[student@workstation ~(architect1-finance)]$ ssh root@compute1
Last login: Sun May 31 19:00:07 2020 from 172.25.250.254
#查看云主机的根磁盘已经存放在计算节点本地
[root@compute1 ~]# ls /var/lib/nova/instances/
_base  compute_nodes  e621ca91-9c12-42f5-aa73-3e73547d9d0a  locks
[root@compute1 ~]# ls /var/lib/nova/instances/e621ca91-9c12-42f5-aa73-3e73547d9d0a/
console.log  disk  disk.info
#删除云主机，磁盘文件也被删除
[student@workstation ~(architect1-finance)]$ openstack server delete finance-server1
[student@workstation ~(architect1-finance)]$ ssh root@compute1
Last login: Sun May 31 19:02:02 2020 from 172.25.250.254
[root@compute1 ~]# ls /var/lib/nova/instances/
_base  compute_nodes  locks

练习：创建永久存储作为云主机的根磁盘

[root@compute1 ~]# vim /var/lib/config-data/puppetgenerated/nova_libvirt/etc/nova/nova.conf
[libvirt]
images_type=rbd
[root@compute1 ~]# docker restart nova_compute
#将镜像导入到云硬盘中
[student@workstation ~(architect1-finance)]$ openstack volume create --size 10 --image rhel7 finance-vol1
[student@workstation ~(architect1-finance)]$ openstack volume list
[root@controller0 ~]# rados -p volumes ls | grep a63d54f5-a68a-486b-9c07-9a735d83dff0
rbd_id.volume-a63d54f5-a68a-486b-9c07-9a735d83dff0
#创建虚拟机并使用块存储用作系统盘
[student@workstation ~(architect1-finance)]$ openstack server create --flavor default --volume finance-vol1 --key-name example-keypair --nic net-id=finance-network1 finance-server2 --wait
[student@workstation ~(architect1-finance)]$ openstack floating ip list
[student@workstation ~(architect1-finance)]$ openstack server add floating ip finance-server2 172.25.250.110
[student@workstation ~(architect1-finance)]$ ssh cloud-user@172.25.250.110
[cloud-user@finance-server2 ~]$ sudo -i
[root@finance-server2 ~]# echo hello > /test
[root@finance-server2 ~]# sync
[root@finance-server2 ~]# exit
#删除云主机，查看卷还在
[student@workstation ~(architect1-finance)]$ openstack server delete finance-server2
[student@workstation ~(architect1-finance)]$ ssh root@controller0
Last login: Sun May 31 19:07:23 2020 from 172.25.250.254
[root@controller0 ~]# rados -p volumes ls | grep a63d54f5-a68a-486b-9c07-9a735d83dff0
rbd_id.volume-a63d54f5-a68a-486b-9c07-9a735d83dff0

使用块存储启动虚拟机

[student@workstation ~(architect1-finance)]$ openstack server create --flavor default --volume finance-vol1 --key-name example-keypair --nic net-id=finance-network1 finance-server2 --wait
[student@workstation ~(architect1-finance)]$ openstack server add floating ip finance-server2 172.25.250.110
[student@workstation ~(architect1-finance)]$ ssh cloud-user@172.25.250.110
[cloud-user@finance-server2 ~]$ cat /test
hello

为云主机附加卷

[student@workstation ~(architect1-finance)]$ openstack volume create --size 1 finance-vol2
[student@workstation ~(architect1-finance)]$ openstack server add volume finance-server2 finance-vol2
[student@workstation ~(architect1-finance)]$ ssh cloud-user@172.25.250.110
[cloud-user@finance-server2 ~]$ lsblk
NAME   MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
vda    253:0    0  10G  0 disk
└─vda1 253:1    0  10G  0 part /
vdb    253:16   0   1G  0 disk
[student@workstation ~(architect1-finance)]$ openstack volume list

清除环境

[student@workstation ~(architect1-finance)]$ openstack server delete finance-server2
[student@workstation ~(architect1-finance)]$ openstack volume delete finance-vol1 finance-vol2
[student@workstation ~(architect1-finance)]$ lab storage-compare cleanup

第六章 管理openstack网络

第一节 描述网络协议类型

• OpenStack 网络服务是 SDN 网络项目，在虚拟环境中提供网络即服务（Networking-as-aService, NaaS）
• 它实施传统的网络功能，如子网、桥接、VLANs以及开放虚拟网络（Open Virtual Network, OVN）等新技术
• OVN 是 RHOSP 的默认 SDN ，由openvswitch社区提出

Geneve 简介：

• 创建 VLAN 以分段网络流量，12位的 VLAN ID 限制了虚拟网段在4000个左右
• VXLAN（虚拟扩展局域网）解决了VLAN的局限性，24位标头确保更多的虚拟网络数量
• VXLAN 不要求改变任何设备的基础架构，但它不兼容其他网络解决方案，如 STT 与 NVGRE
• Geneve（Generic Network Virtualization Encapsulation, 通用网络虚拟化封装）通过支持 VXLAN、NVGRE 与 STT 的所有功能来解决这些限制

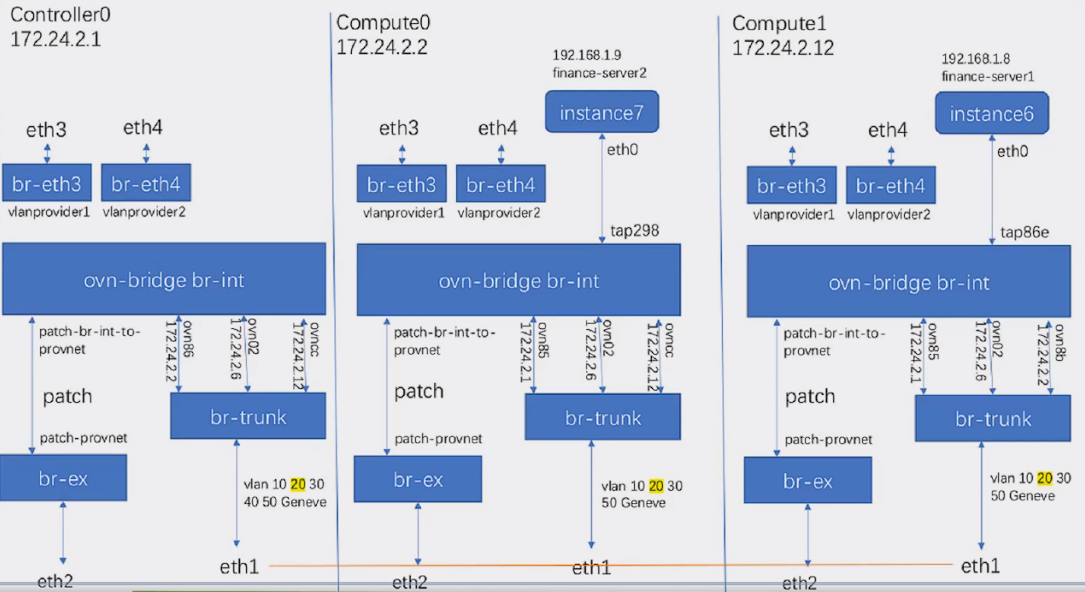

osp13网络架构图

练习：云主机网络

准备环境

[student@workstation ~]$ lab networking-protocols setup

查看虚拟化节点信息

[student@workstation ~(architect1-finance)]$ openstack hypervisor list
+----+-----------------------------------+-----------------+-------------+-------+
| ID | Hypervisor Hostname               | Hypervisor Type | Host IP     | State |
+----+-----------------------------------+-----------------+-------------+-------+
|  1 | compute1.overcloud.example.com    | QEMU            | 172.24.1.12 | up    |
|  2 | computehci0.overcloud.example.com | QEMU            | 172.24.1.6  | up    |
|  3 | compute0.overcloud.example.com    | QEMU            | 172.24.1.2  | up    |
+----+-----------------------------------+-----------------+-------------+-------+

创建两个虚拟机

[student@workstation ~(architect1-finance)]$ openstack server create --flavor default --image rhel7 --nic net-id=finance-network1 --availability-zone nova:compute0.overcloud.example.com finance-server3
[student@workstation ~(architect1-finance)]$ openstack server create --flavor default --image rhel7 --nic net-id=finance-network1 --availability-zone nova:compute0.overcloud.example.com finance-server4
[student@workstation ~(architect1-finance)]$ openstack server list
+--------------------------------------+-----------------+--------+-------------------------------+-------+---------+
| ID                                   | Name            | Status | Networks                      | Image | Flavor  |
+--------------------------------------+-----------------+--------+-------------------------------+-------+---------+
| 532452cd-4db2-4754-9a8c-96b0e1b243b2 | finance-server4 | BUILD  | finance-network1=192.168.1.10 | rhel7 | default |
| 9663e1cc-6a4c-482c-97b6-24c7f11b8326 | finance-server3 | BUILD  | finance-network1=192.168.1.5  | rhel7 | default |
+--------------------------------------+-----------------+--------+-------------------------------+-------+---------+

查看虚拟机的配置文件

[root@compute0 ~]# virsh list --all
 Id    Name                           State
----------------------------------------------------
 1     instance-00000002              running
 2     instance-00000001              running
 [root@compute0 ~]# virsh dumpxml instance-00000002 | grep tap
      <target dev='tap9e10bd23-f5'/>

查看网桥信息

[root@compute0 ~]# ovs-vsctl show
d2399352-a3b5-4559-9868-ec8f97fdf2f5
    Manager "ptcp:6640:127.0.0.1"
        is_connected: true
    Bridge "br-eth4"
        fail_mode: standalone
        Port "eth4"
            Interface "eth4"
        Port "br-eth4"
            Interface "br-eth4"
                type: internal
    Bridge br-trunk
        fail_mode: standalone
        Port "vlan50"
            tag: 50
            Interface "vlan50"
                type: internal
        Port "vlan30"
            tag: 30
            Interface "vlan30"
                type: internal
        Port "eth1"
            Interface "eth1"
        Port br-trunk
            Interface br-trunk
                type: internal
        Port "vlan10"
            tag: 10
            Interface "vlan10"
                type: internal
        Port "vlan20"
            tag: 20
            Interface "vlan20"
                type: internal
    Bridge br-ex
        fail_mode: standalone
        Port "eth2"
            Interface "eth2"
        Port "patch-provnet-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3-to-br-int"
            Interface "patch-provnet-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3-to-br-int"
                type: patch
                options: {peer="patch-br-int-to-provnet-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3"}
        Port br-ex
            Interface br-ex
                type: internal
    Bridge br-int
        fail_mode: secure
        Port "tapf507830a-f1"
            Interface "tapf507830a-f1"
        Port "ovn-85c877-0"
            Interface "ovn-85c877-0"
                type: geneve
                options: {csum="true", key=flow, remote_ip="172.24.2.1"}
        Port "tapb356e2b4-60"
            Interface "tapb356e2b4-60"
        Port br-int
            Interface br-int
                type: internal
        Port "ovn-028ad0-0"
            Interface "ovn-028ad0-0"
                type: geneve
                options: {csum="true", key=flow, remote_ip="172.24.2.6"}
        Port "patch-br-int-to-provnet-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3"
            Interface "patch-br-int-to-provnet-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3"
                type: patch
                options: {peer="patch-provnet-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3-to-br-int"}
        Port "ovn-cc9fe3-0"
            Interface "ovn-cc9fe3-0"
                type: geneve
                options: {csum="true", key=flow, remote_ip="172.24.2.12"}
        Port "tap9e10bd23-f5"
            Interface "tap9e10bd23-f5"
    Bridge "br-eth3"
        fail_mode: standalone
        Port "br-eth3"
            Interface "br-eth3"
                type: internal
        Port "eth3"
            Interface "eth3"
    ovs_version: "2.9.0"

#列出所有网桥上的端口
[root@compute0 ~]# ovs-vsctl list-ports br-int
ovn-028ad0-0
ovn-85c877-0
ovn-cc9fe3-0
patch-br-int-to-provnet-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3
tap9e10bd23-f5
tapb356e2b4-60
tapf507830a-f1

OpenStack网络相关命令：

$ openstack hypervisor list：查看 OpenStack 中的 hypervisor（计算节点） 武汉誉天
2021年RHCA培训专用-请勿传播
$ openstack network list [--internal|--external]：查看指定项目中的内部或外部网络
$ openstack subnet list：查看全部子网信息
$ openstack port list --network ：查看指定 内部网络中的端口信息
$ openstack router list：查看指定项目中的OVN逻辑路由器
$ openstack security group list：查看指定项目中的安全组规则
$ openstack security group rule list --long -f [json|yaml]：查看指定安全组规则的详细信息

第二节 介绍开放虚拟网络（OVN）

OVN 架构：

​ 1.北向数据库

• OpenStack 网络使用 OVN ML2 插件（OVN ML2 Plug-in, 即neutron plug-in）
• OVN ML2 插件运行在控制节点上，监听 TCP 6641 端口
• OVN 北向数据库（OVN Northbound Database）存储从 OVNML2 插件获得的 OVN 逻辑网络配置（logical networkconfiguration）
• OVN 北向服务（OVN Northbound Service）从 OVN 北向数据库中转换逻辑网络配置到逻辑数据流中（logical flows）
• ovn-northd 将逻辑数据流注入并存储于 OVN Southbound Database 中 ovn-northd 服务运行在控制节点上

​ 2.南向数据库

• OVN 南向数据库（OVN Southbound Database）监听 TCP6642 端口
• 每个 hypervisor 具有其自身的 ovn-controller
• OVN 使用逻辑流创建整个网络，逻辑流被分布到每个 hypervisor 节点的 ovn-controller中。ovn-controller 将逻辑流转译成 OpenFlow 流

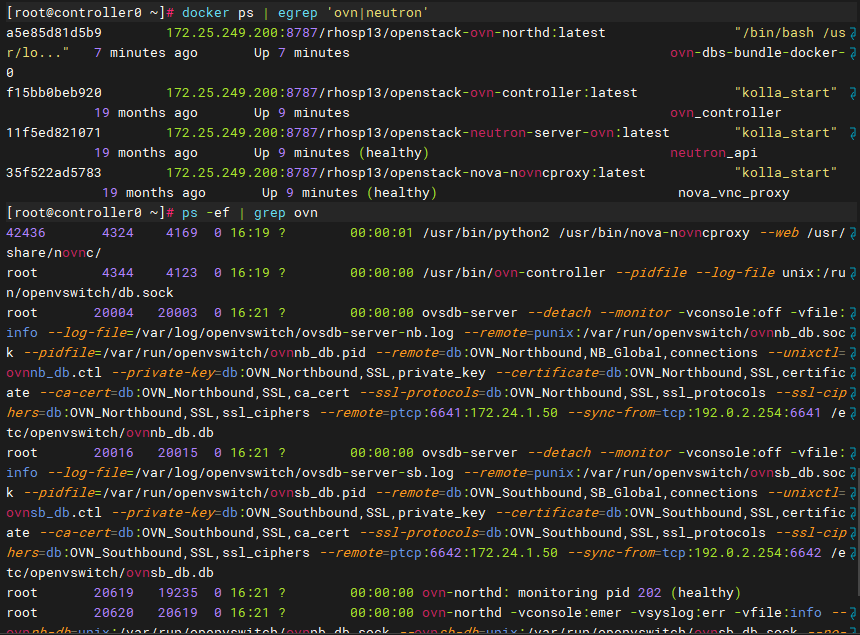

查看控制节点的neutron组件

[root@controller0 ~]# docker ps | egrep 'ovn|neutron'
a5e85d81d5b9        172.25.249.200:8787/rhosp13/openstack-ovn-northd:latest                "/bin/bash /usr/lo..."   7 minutes ago       Up 7 minutes                                        ovn-dbs-bundle-docker-0
f15bb0beb920        172.25.249.200:8787/rhosp13/openstack-ovn-controller:latest            "kolla_start"            19 months ago       Up 9 minutes                                        ovn_controller
11f5ed821071        172.25.249.200:8787/rhosp13/openstack-neutron-server-ovn:latest        "kolla_start"            19 months ago       Up 9 minutes (healthy)                              neutron_api
35f522ad5783        172.25.249.200:8787/rhosp13/openstack-nova-novncproxy:latest           "kolla_start"            19 months ago       Up 9 minutes (healthy)                              nova_vnc_proxy

控制节点查看ovn运行的服务

[root@controller0 ~]# ps -ef | grep ovn

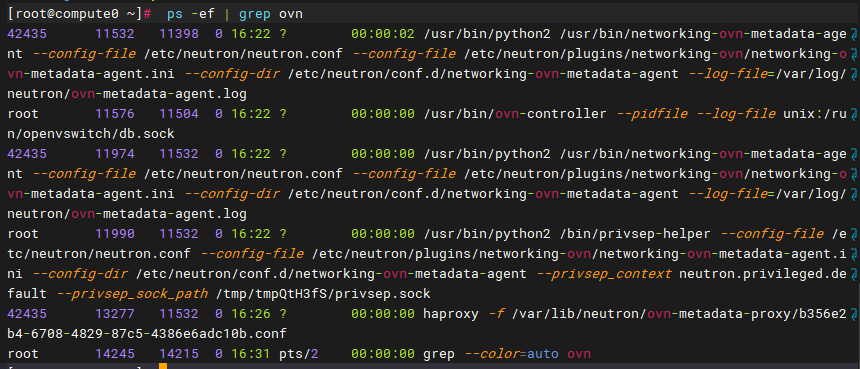

计算节点查看ovn运行的服务

[root@compute0 ~]#  ps -ef | grep ovn

查看所有open port和ovndb的数据库地址

[root@controller0 ~]# ovs-vsctl list open
_uuid               : 6c237e8b-5014-42f1-9ac4-cc7728797597
bridges             : [1d420f80-91e3-44ad-85ff-b311d90a7538, b1eb4d87-1b0b-4541-aca6-e9adefbe8172, b2474c7c-c50c-4a22-8826-f1f9233bf5ab, eb5acfd9-bc1c-444e-9045-8d48aa6d01c5, efed7252-c6fe-487c-a1bc-0b4e6ee9a6d3]
cur_cfg             : 46
datapath_types      : [netdev, system]
db_version          : "7.15.1"
external_ids        : {hostname="controller0.overcloud.example.com", ovn-bridge=br-int, ovn-bridge-mappings="datacentre:br-ex,vlanprovider1:br-eth3,vlanprovider2:br-eth4,storage:br-trunk", ovn-cms-options=enable-chassis-as-gw, ovn-encap-ip="172.24.2.1", ovn-encap-type=geneve, ovn-remote="tcp:172.24.1.50:6642", rundir="/var/run/openvswitch", system-id="85c87734-e866-4225-b305-471357c68b8a"}
iface_types         : [geneve, gre, internal, lisp, patch, stt, system, tap, vxlan]
manager_options     : []
next_cfg            : 46
other_config        : {}
ovs_version         : "2.9.0"
ssl                 : []
statistics          : {}
system_type         : rhel
system_version      : "7.5"

关联环境变量

[root@controller0 ~]# export OVN_SB_DB=tcp:172.24.1.50:6642 #南向数据库存放流表信息
[root@controller0 ~]# export OVN_NB_DB=tcp:172.24.1.50:6641 #北向数据库定义网络架构

在北向网络中查看ovn架构信息

#查看所有的switch和router的架构拓扑信息
[root@controller0 ~]# ovn-nbctl show
switch b2cc3860-13f9-4eeb-b328-10dbc1f1b131 (neutron-d55f6d1e-c29e-4825-8de4-01dd95f8a220) (aka provider-storage)
    port feaf640d-9dcb-4b39-9e00-75761e6f6abd
        type: localport
        addresses: ["fa:16:3e:61:52:31 172.24.3.200"]
    port provnet-d55f6d1e-c29e-4825-8de4-01dd95f8a220
        type: localnet
        tag: 30
        addresses: ["unknown"]
switch aca840be-670a-4eb3-9b36-4246c0eabb6c (neutron-9838d8ed-3e64-4196-87f0-a4bc59059be9) (aka lb-mgmt-net)
    port b7b5ab29-d23e-40cd-ba0b-ff81703e63a6
        type: localport
        addresses: ["fa:16:3e:12:16:7d 172.23.0.2"]
    port b5d7e4a5-4bfa-4207-aa54-d8c0e0ff7168 (aka octavia-health-manager-controller0.overcloud.example.com-listen-port)
        addresses: ["fa:16:3e:42:7a:a9 172.23.0.5"]
switch c5b32043-cd23-41ac-9197-ea41917870bb (neutron-e14d713e-c1f5-4800-8543-713563d7e82e) (aka production-network1)
    port f2923c9a-5da8-4e84-847e-1bc3649d5920
        type: localport
        addresses: ["fa:16:3e:f5:68:fb 192.168.1.2"]
switch 153db687-27fe-4f90-a3f0-2958c373dcc2 (neutron-7a6556ab-6083-403e-acfc-79caf3873660) (aka finance-network1)
    port f507830a-f124-4c0f-ab1b-8ee6d09de474	#finance-server3的port
        addresses: ["fa:16:3e:55:c4:1c 192.168.1.5"]
    port 42671818-08d4-4a99-bd80-99a452ee40b3	#交换机连接路由器的port
        type: localport
        addresses: ["fa:16:3e:e3:12:fd 192.168.1.2"]
    port ba553e3a-43e9-48cb-afff-fb780c961ae8
        type: router
        router-port: lrp-ba553e3a-43e9-48cb-afff-fb780c961ae8	 #路由器端的port
    port 9e10bd23-f5e3-4c4b-8959-047e82882aaf	#finance-server4的port
        addresses: ["fa:16:3e:98:ec:1e 192.168.1.10"]
switch f0f71887-2544-4f29-b46c-04b0aa0b2e52 (neutron-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3) (aka provider-datacentre)
    port provnet-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3
        type: localnet
        addresses: ["unknown"]
    port d3a97fff-95de-447c-a962-01b43e0299de
        type: localport
        addresses: ["fa:16:3e:dc:ab:47"]
    port 624478c2-c249-43dd-9bf1-d81a1e729688
        type: router
        router-port: lrp-624478c2-c249-43dd-9bf1-d81a1e729688
router 9f07c558-a293-40dd-86f7-2551f3c442d3 (neutron-83a36aa0-977f-4993-a6bb-cc0f1f2ff4a4) (aka finance-router1)
    port lrp-624478c2-c249-43dd-9bf1-d81a1e729688	#连接外网的port
        mac: "fa:16:3e:8b:e8:87"
        networks: ["172.25.250.103/24"]	#外网的网关
        gateway chassis: [85c87734-e866-4225-b305-471357c68b8a]
    port lrp-ba553e3a-43e9-48cb-afff-fb780c961ae8	#连接finnance-network1的port
        mac: "fa:16:3e:ce:c1:f2"
        networks: ["192.168.1.1/24"]	#内网的网关
    nat ba3b2264-c843-4d97-9819-c950049e6f65
        external ip: "172.25.250.103"
        logical ip: "192.168.1.0/24"
        type: "snat"

#查看所有网络的id
[root@controller0 ~]# ovn-nbctl ls-list
153db687-27fe-4f90-a3f0-2958c373dcc2 (neutron-7a6556ab-6083-403e-acfc-79caf3873660)
aca840be-670a-4eb3-9b36-4246c0eabb6c (neutron-9838d8ed-3e64-4196-87f0-a4bc59059be9)
b2cc3860-13f9-4eeb-b328-10dbc1f1b131 (neutron-d55f6d1e-c29e-4825-8de4-01dd95f8a220)
c5b32043-cd23-41ac-9197-ea41917870bb (neutron-e14d713e-c1f5-4800-8543-713563d7e82e)
f0f71887-2544-4f29-b46c-04b0aa0b2e52 (neutron-fc5472ee-98d9-4f6b-9bc9-544ca18aefb3)

在南向网络中查看ovn架构信息

[root@controller0 ~]# ovn-sbctl show
Chassis "8b62a309-b80d-49dc-8ce8-5b000ca2ce83"
    hostname: "compute0.overcloud.example.com"
    Encap geneve
        ip: "172.24.2.2"
        options: {csum="true"}
    Port_Binding "9e10bd23-f5e3-4c4b-8959-047e82882aaf"
    Port_Binding "f507830a-f124-4c0f-ab1b-8ee6d09de474"
Chassis "028ad0fe-55b6-4c8d-b3d4-03e749d6448e"
    hostname: "computehci0.overcloud.example.com"
    Encap geneve
        ip: "172.24.2.6"
        options: {csum="true"}
Chassis "85c87734-e866-4225-b305-471357c68b8a"
    hostname: "controller0.overcloud.example.com"
    Encap geneve
        ip: "172.24.2.1"
        options: {csum="true"}
    Port_Binding "cr-lrp-624478c2-c249-43dd-9bf1-d81a1e729688"
    Port_Binding "b5d7e4a5-4bfa-4207-aa54-d8c0e0ff7168"
Chassis "cc9fe322-d941-4fff-bd77-7490bc8687a3"
    hostname: "compute1.overcloud.example.com"
    Encap geneve
        ip: "172.24.2.12"
        options: {csum="true"}

查看安全组规则实现

#查看网络中虚拟机的防火墙规则
[root@controller0 ~]#  ovn-nbctl acl-list switch id
ovn-nbctl: 'acl-list' command takes at most 1 arguments

#查看网络端口
[root@controller0 ~]# ovn-nbctl show
    port 9e10bd23-f5e3-4c4b-8959-047e82882aaf	#finance-server4的port
        addresses: ["fa:16:3e:98:ec:1e 192.168.1.10"]

#查看路由器上的的防火墙规则
[root@controller0 ~]#  ovn-nbctl acl-list neutron-7a6556ab-6083-403e-acfc-79caf3873660  | grep 9e10bd23-f5e3-4c4b-8959-047e82882aaf
from-lport  1002 (inport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip4) allow-related
from-lport  1002 (inport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip4 && ip4.dst == {255.255.255.255, 192.168.1.0/24} && udp && udp.src == 68 && udp.dst == 67) allow
from-lport  1002 (inport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip6) allow-related
from-lport  1001 (inport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip) drop
  to-lport  1002 (outport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip4 && ip4.src == $as_ip4_952467e9_b667_44ba_adb6_878c2e089308) allow-related
  to-lport  1002 (outport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip4 && ip4.src == 0.0.0.0/0 && icmp4) allow-related
  to-lport  1002 (outport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip4 && ip4.src == 0.0.0.0/0 && tcp && tcp.dst == 22) allow-related
  to-lport  1002 (outport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip4 && ip4.src == 0.0.0.0/0 && tcp && tcp.dst == 443) allow-related
  to-lport  1002 (outport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip4 && ip4.src == 0.0.0.0/0 && tcp && tcp.dst == 80) allow-related
  to-lport  1002 (outport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip6 && ip6.src == $as_ip6_952467e9_b667_44ba_adb6_878c2e089308) allow-related
  to-lport  1001 (outport == "9e10bd23-f5e3-4c4b-8959-047e82882aaf" && ip) drop

#ovs中的插件调用了防火墙的插件来使用防火墙规则
[root@controller0 ~]# lsmod
nf_conntrack          133053  8 openvswitch,nf_nat,nf_nat_ipv4,nf_nat_ipv6,xt_conntrack,nf_conntrack_netlink,nf_conntrack_ipv4,nf_conntrack_ipv6
[root@controller0 ~]# modinfo nf_conntrack
filename:       /lib/modules/3.10.0-862.9.1.el7.x86_64/kernel/net/netfilter/nf_conntrack.ko.xz

查看路由规则实现

#查看路由的id
[root@controller0 ~]# ovn-nbctl lr-list
9f07c558-a293-40dd-86f7-2551f3c442d3 (neutron-83a36aa0-977f-4993-a6bb-cc0f1f2ff4a4)
#查看路由器上的nat规则
[root@controller0 ~]# ovn-nbctl lr-nat-list neutron-83a36aa0-977f-4993-a6bb-cc0f1f2ff4a4
TYPE             EXTERNAL_IP        LOGICAL_IP            EXTERNAL_MAC         LOGICAL_PORT
snat             172.25.250.103     192.168.1.0/24
#给虚拟机绑定一个浮动ip
[student@workstation ~(architect1-finance)]$ openstack network list
[student@workstation ~(architect1-finance)]$ openstack floating ip create provider-datacentre
[student@workstation ~(architect1-finance)]$ openstack floating ip list
[student@workstation ~(architect1-finance)]$ openstack server add floating ip finance-server3 172.25.250.107
#再次查看nat路由信息
[root@controller0 ~]# ovn-nbctl lr-nat-list neutron-83a36aa0-977f-4993-a6bb-cc0f1f2ff4a4
TYPE             EXTERNAL_IP        LOGICAL_IP            EXTERNAL_MAC         LOGICAL_PORT
dnat_and_snat    172.25.250.107     192.168.1.5           fa:16:3e:de:5f:40    f507830a-f124-4c0f-ab1b-8ee6d09de474
snat             172.25.250.103     192.168.1.0/24

在南向网络中查看流表信息

在控制节点查看总的流表信息，来自于数据库对整个网络的汇总信息

#查看云主机在ovs上的port id
[student@workstation ~(architect1-finance)]$ openstack port list
| 9e10bd23-f5e3-4c4b-8959-047e82882aaf |
      | fa:16:3e:98:ec:1e | ip_address='192.168.1.10', subnet_id='4836a9dd-e01f-4a33-a971-fa49dec9ffd5'   | ACTIVE |
#或者：
[root@controller0 ~]# ovn-nbctl show
    port 9e10bd23-f5e3-4c4b-8959-047e82882aaf	#finance-server4的port
        addresses: ["fa:16:3e:98:ec:1e 192.168.1.10"]
#查看实例对应port的相关信息流
[root@controller0 ~]# ovn-sbctl lflow-list | grep 9e10bd23-f5e3-4c4b-8959-047e82882aaf
#查看dhcp分配的所有地址
[root@controller0 ~]# ovn-sbctl lflow-list | grep offerip
#查看nat的信息
[root@controller0 ~]# ovn-sbctl lflow-list | grep nat

在计算节点查看各节点的真实的流表信息，控制节点负责定义网络信息，计算节点的ovn-controller服务收到请求，去实现具体的功能

[root@compute1 ~]# docker ps | grep ovn
e2c26290b12a        172.25.249.200:8787/rhosp13/openstack-ovn-controller:latest               "kolla_start"       19 months ago       Up 34 minutes                                 ovn_controller
9aec1c0ab9c5        172.25.249.200:8787/rhosp13/openstack-neutron-metadata-agent-ovn:latest   "kolla_start"       19 months ago       Up 34 minutes (healthy)                       ovn_metadata_agent
#在计算节点查看具体的流表信息
[root@compute1 ~]# ovs-ofctl dump-flows br-int | grep nat

[root@controller0 ~]# ovs-ofctl show br-trunk
OFPT_FEATURES_REPLY (xid=0x2): dpid:0000525400010001
n_tables:254, n_buffers:0
capabilities: FLOW_STATS TABLE_STATS PORT_STATS QUEUE_STATS ARP_MATCH_IP
actions: output enqueue set_vlan_vid set_vlan_pcp strip_vlan mod_dl_src mod_dl_dst mod_nw_src mod_nw_dst
 mod_nw_tos mod_tp_src mod_tp_dst
 1(eth1): addr:52:54:00:01:00:01
     config:     0
     state:      0
     speed: 0 Mbps now, 0 Mbps max
 2(vlan10): addr:02:39:8c:88:94:3d
     config:     0
     state:      0
     speed: 0 Mbps now, 0 Mbps max
 3(vlan20): addr:72:04:0c:22:06:e3
     config:     0
     state:      0
     speed: 0 Mbps now, 0 Mbps max
 4(vlan30): addr:62:d2:6c:ea:f8:5b
     config:     0
     state:      0
     speed: 0 Mbps now, 0 Mbps max
 5(vlan40): addr:ee:eb:73:3b:24:15
     config:     0
     state:      0
     speed: 0 Mbps now, 0 Mbps max
 6(vlan50): addr:4e:0b:97:5a:93:2d
     config:     0
     state:      0
     speed: 0 Mbps now, 0 Mbps max
 LOCAL(br-trunk): addr:52:54:00:01:00:01
     config:     0
     state:      0
     speed: 0 Mbps now, 0 Mbps max
OFPT_GET_CONFIG_REPLY (xid=0x4): frags=normal miss_send_len=0

说明

带VNI标签的数据包被geneve隧道封装后，走vlan20通讯

查看geneve流量在租户网络vlan20（172.24.2.0/24）中传输

[student@workstation ~(architect1-finance)]$ openstack server list
+--------------------------------------+------+--------+--------------------
-----------+-------+---------+
| ID | Name | Status | Networks
| Image | Flavor |
+--------------------------------------+------+--------+--------------------
-----------+-------+---------+
| 3b9ef7e8-cd48-4c2f-9b81-60cade80d854 | web2 | ACTIVE | financenetwork1=192.168.1.12 | rhel7 | default |
| 67445708-c862-40bd-ab21-7cb01875a5b5 | web1 | ACTIVE | financenetwork1=192.168.1.8 | rhel7 | default |
+--------------------------------------+------+--------+--------------------
-----------+-------+---------+
#在计算节点上的vlan20接口上抓包查看
[root@compute1 ~]# tcpdump -ten -i vlan20 | grep ICMP
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on vlan20, link-type EN10MB (Ethernet), capture size 262144 bytes e2:6a:ed:98:21:43 > d2:ed:bc:5d:dc:75, ethertype IPv4 (0x0800), length 156: 172.24.2.12.24438 > 172.24.2.2.6081: Geneve, Flags [C], vni 0x4, proto TEB (0x6558), options [8 bytes]: fa:16:3e:ba:a7:84 > fa:16:3e:b5:7f:df, ethertype IPv4 (0x0800), length 98: 192.168.1.8 > 192.168.1.12: ICMP echo request, id 1318, seq 1, length 64 d2:ed:bc:5d:dc:75 > e2:6a:ed:98:21:43, ethertype IPv4 (0x0800), length 156: 172.24.2.2.25470 > 172.24.2.12.6081: Geneve, Flags [C], vni 0x4, proto TEB (0x6558), options [8 bytes]: fa:16:3e:b5:7f:df > fa:16:3e:ba:a7:84, ethertype IPv4 (0x0800), length 98: 192.168.1.12 > 192.168.1.8: ICMP echo reply, id 1318, seq 1, length 64
#说明：
finance-network1的VNI为0x4

创建两个网络，他们有各自的VNI 标签，并且web2和web3在不同的计算节点上，它们之间互访走 vlan20

[student@workstation ~(developer1-finance)]$ openstack server list
+--------------------------------------+------+--------+--------------------
-----------+-------+---------+
| ID | Name | Status | Networks
| Image | Flavor |
+--------------------------------------+------+--------+--------------------
-----------+-------+---------+
| 18a4252c-969e-4bbf-90e1-c81765a3fc5a | web3 | ACTIVE | financenetwork2=192.168.2.4 | rhel7 | default |
| 3b9ef7e8-cd48-4c2f-9b81-60cade80d854 | web2 | ACTIVE | financenetwork1=192.168.1.12 | rhel7 | default |
| 67445708-c862-40bd-ab21-7cb01875a5b5 | web1 | ACTIVE | financenetwork1=192.168.1.8 | rhel7 | default |
+--------------------------------------+------+--------+--------------------
-----------+-------+---------+
[root@compute0 ~]# tcpdump -ten -i vlan20 | grep ICMP
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode listening on vlan20, link-type EN10MB (Ethernet), capture size 262144 bytes e2:6a:ed:98:21:43 > d2:ed:bc:5d:dc:75, ethertype IPv4 (0x0800), length 156: 172.24.2.12.29342 > 172.24.2.2.6081: Geneve, Flags [C], vni 0x4, proto TEB (0x6558), options [8 bytes]: fa:16:3e:1b:08:3e > fa:16:3e:b5:7f:df, ethertype IPv4 (0x0800), length 98: 192.168.2.4 > 192.168.1.12: ICMP echo request, id 1341, seq 1, length 64 d2:ed:bc:5d:dc:75 > e2:6a:ed:98:21:43, ethertype IPv4 (0x0800), length 156: 172.24.2.2.40524 > 172.24.2.12.6081: Geneve, Flags [C], vni 0x6, proto TEB (0x6558), options [8 bytes]: fa:16:3e:44:47:9c > fa:16:3e:05:13:ab, ethertype IPv4 (0x0800), length 98: 192.168.1.12 > 192.168.2.4: ICMP echo reply, id 1341, seq 1, length 64
#说明：
finance-network1 的VNI标签是0x4
finance-network2 的VNI标签是0x6

OVN DHCP：

• OVN 实施 DHCPv4，不需要 DHCP 代理（DHCP agent）虚拟网络不再需要 DHCP 命名空间 （namespace）或 dnsmasq进程
• 运行 ovn-controller 的每个计算节点都配置了 DHCPv4 选项（DHCPv4 options），这意味着 DHCP 支持完全分布式，来自虚拟机实例的 DHCP 请求由 ovn-controller 处理
• OVN 北向数据库中的 DHCP_Options 表存储 DHCP 选项如果 enable_dhcp 选项设为True，则数 据库会在创建子网时新建一个条目
• DHCP_Options 表 options 列中存储的 DHCPv4 选项包括 ovncontroller 在接收 DHCPv4 请求时 发出的回复

$ ovn-nbctl list DHCP_Options：查看 OVN 北向数据库中的 DHCP_Options 表

[root@controller0 ~]# ovn-nbctl list DHCP_Options
_uuid               : 0207ac05-c912-4897-bf63-abafa00381be
cidr                : "172.24.3.0/24"
external_ids        : {"neutron:revision_number"="0", subnet_id="6e5af9b0-67ef-4e1e-9eda-7d6633091d11"}
options             : {classless_static_route="{169.254.169.254/32,172.24.3.200, 0.0.0.0/0,172.24.3.1}", dns_server="{172.25.250.254, 8.8.8.8}", lease_time="43200", mtu="1500", router="172.24.3.1", server_id="172.24.3.1", server_mac="fa:16:3e:59:b6:54"}

_uuid               : 1cb7d6e2-66ee-4d2e-8478-6ac14a4bbcb0
cidr                : "172.23.0.0/16"
external_ids        : {"neutron:revision_number"="0", subnet_id="e0db6f1e-70be-4360-8210-0435a47e3a88"}
options             : {classless_static_route="{169.254.169.254/32,172.23.0.2, 0.0.0.0/0,172.23.0.1}", dns_server="{172.25.250.254, 8.8.8.8}", lease_time="43200", mtu="1442", router="172.23.0.1", server_id="172.23.0.1", server_mac="fa:16:3e:a8:ab:a4"}

_uuid               : c7a78dee-18d1-43f0-a915-d472302f1750
cidr                : "192.168.1.0/24"
external_ids        : {"neutron:revision_number"="0", subnet_id="f0c54c6a-5094-4386-9e97-b8564ba31a93"}
options             : {classless_static_route="{169.254.169.254/32,192.168.1.2, 0.0.0.0/0,192.168.1.1}", dns_server="{172.25.250.254}", lease_time="43200", mtu="1442", router="192.168.1.1", server_id="192.168.1.1", server_mac="fa:16:3e:91:98:f6"}

_uuid               : 9a09543e-f937-4110-bc86-dc6a7464ba53
cidr                : "192.168.1.0/24"
external_ids        : {"neutron:revision_number"="0", subnet_id="4836a9dd-e01f-4a33-a971-fa49dec9ffd5"}
options             : {classless_static_route="{169.254.169.254/32,192.168.1.2, 0.0.0.0/0,192.168.1.1}", dns_server="{172.25.250.254}", lease_time="43200", mtu="1442", router="192.168.1.1", server_id="192.168.1.1", server_mac="fa:16:3e:9f:1a:b5"}
[root@compute0 ~]# ip netns ls
ovnmeta-b356e2b4-6708-4829-87c5-4386e6adc10b (id: 0)
[root@compute0 ~]# ip netns exec ovnmeta-b356e2b4-6708-4829-87c5-4386e6adc10b ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: tapb356e2b4-61@if21: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether fa:16:3e:e3:12:fd brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 192.168.1.2/24 brd 192.168.1.255 scope global tapb356e2b4-61
       valid_lft forever preferred_lft forever
    inet 169.254.169.254/16 brd 169.254.255.255 scope global tapb356e2b4-61
       valid_lft forever preferred_lft forever

OVN/OVS 相关命令汇总：

使用如下命令时，需指定OVN_NB_DB或OVN_SB_DB 环境变量

export OVN_SB_DB=tcp:172.24.1.50:6642
export OVN_NB_DB=tcp:172.24.1.50:6641

北向数据库（OVN Northbound Database）相关命令：

$ ovs-vsctl list Open_vSwitch：查看 OVN 北向与南向数据库ovn-remote 参数
$ ovn-nbctl show [<ovn_logical_switch>|<ovn_logical_router>]：查看 OVN 北向数据库的逻辑交换机与路由器的信息
$ ovn-nbctl ls-list：查看 OVN 逻辑交换机
$ ovn-nbctl lr-list：查看 OVN 逻辑路由器
$ ovn-nbctl lsp-list <ovn_logical_switch>：查看 OVN 逻辑交换机端口
$ ovn-nbctl lrp-list <ovn_logical_router>：查看 OVN 逻辑路由器端口
$ ovn-nbctl lr-route-list <ovn_logical_router>：查看 OVN 逻辑路由器的路由信息
$ ovn-nbctl lr-nat-list <ovn_logical_router>：查看 OVN 逻辑路由器的 NAT 信息
$ ovn-nbctl dhcp-options-list：查看 OVN 的 DHCP 信息
$ ovn-nbctl dhcp-options-get-options <dhcp_options_uuid>：查看指定 DHCP 的详细信息
$ ovn-nbctl list <ovn_nb_db_table>：查看 OVN 北向数据库的指定表
$ ovn-nbctl acl-list <ovn_logical_switch>：查看 OVN 逻辑交换机的 ACL 规则（安全组规则）

OVN 南向数据库（OVN Southbound Database）相关命令：

$ ovn-sbctl show：查看OVN南向数据库的信息
$ ovn-sbctl lflow-list：查看 OVN 南向数据库的逻辑流信息
$ ovn-sbctl list [Logical_Flow|Port_Binding|Chassis]：查看OVN南向数据库中指定表的详细信息，如逻辑流表、端口绑定表等

OVS 与 OpenFlow 相关命令：

$ ovs-vsctl show：查看 OVS 网桥与端口的详细信息
$ ovs-ofctl show [<ovs_switch>]：查看OVS网桥与端口的flow信息
$ ovs-ofctl dump-ports-desc <ovs_switch>：查看OVS网桥的端口列表详情
$ ovs-ofctl dump-tables <ovs_switch>：查看OVS的OpenFlow流表
$ ovs-ofctl dump-flows <ovs_switch>：查看OVS的OpenFlow流表

第七章 管理计算资源

第一节 描述实例启动流程

1. 通过使用 dashboard 或命令，以 REST API 调用的形式将用户的账户凭据发送到 Keystone。身份验证成功后，生成 token 并返回给用户；
2. 实例启动请求和 token 作为 REST API 调用发送到 Nova 服务。nova-api 将请求转发给Keystone 服务，其验证 token 并在更新 的 token 标头中返回允许的角色和权限；
3. nova-api 为新实例创建数据库条目。其他进程从此条目获取数据，并将当前状态更新至此持久目；
4. nova-api 将 rpc.call 发布到消息队列，请求 nova-scheduler 查找可用的计算节点来运行新实例；
5. nova-scheduler 订阅新实例请求，从实例数据库条目读取过滤和权重参数，从数据库读取集群计算节点数据， 并使用所选计算节点 ID 更新实例记录。nova-scheduler 将 rpc.call 提交到消息队列，请求 nova-compute 发起实例启动；
6. nova-compute 订阅新实例请求，然后发布 rpc.call 使 nova conductor 准备实例启动；
7. nova-conductor 订阅新实例请求，读取数据库条目以获取计算节点 ID 以及请求的 RAM、vCPU 和 flavor，再将新实例状态发布至消息队列；
8. nova-compute 订阅新实例请求，以检索实例信息。通过使用实例请求中的镜像ID，nova-compute 发送 REST API 调用到 Glance 服务以获取镜像的URL。glance-api 服务将请求转发给 Keystone 服 务，后者再次验证 token 并在更新的token标头中返回允许的角色和权限；
9. 通过使用镜像 ID，glance-api 从 Glance 数据库检索镜像元数据，再将镜像 URL 返回给 nova-compute。nova-compute 使⽤该 URL 加载镜像；
10. nova-compute 发送 REST API 调用到 Neutron 服务，请求为新实例分配和配置网络资源。 neutron-server 将请求转发给 Keystone 服务，后者再次验证 token 并在更新的 token 标头中返回允许的角色和权限；
11. neutron-server 作为 CMS（cloud management system）插件读取逻辑网络资源定义并写入到 ovn-nb 数据库。neutron-server 检查现有网络，并为所需端口、连接和网络参数创建新资源；
12. ovn-northd 进程读取 ovn-nb 数据库并将逻辑网络配置转换为 ovn-sb 数据库中的逻辑数据路径流 （logical datapath）。其他 物理网络和端口绑定由所选计算节点上的 ovn-controller 填充；
13. ovn-controller 从 ovn-sb 数据库中读取配置并更新物理网络和绑定表中的计算节点状态。 ovn-controller 连接到作为 OpenFlow 控制器的 ovs-vswitchd，通过 OVS bridge 上的 OpenFlow 规则，动态配置对网络流量的控制。neutron-server 将从计算节点 libvirt 驱动程序获取的 L2 配置和请求的 DHCP 地址返回到消息队列。nova-compute将此实例网络状态写入到实例数据库条目；
14. nova-compute 发送 REST API 调用到 Cinder 服务，请求新实例磁盘。cinder-api 将请求转发给 Keystone 服务，后者再次验证 token 并在更新的 token 标头中返回允许的角色和权限；
15. cinder-api 将 rpc.call 发布到命名的消息队列，请求 cinder scheduler 创建请求大小的卷，或查找已存在的卷的元数据；
16. cinder-scheduler 订阅新实例请求，创建或查找卷，然后将请求的元数据返回到 nova-scheduler；
17. nova-compute 为计算节点驱动程序生成数据，并使⽤ libvirt 执⾏请求在计算节点上创建虚拟机。nova-compute 将卷信息传递给 libvirt；
18. cinder-volume 订阅新实例请求，并检索集群映射。然后，libvirt 在新实例上安装卷；

第二节 介绍红帽超融合架构

练习：在超融合节点发放实例

初始化环境

[student@workstation ~]$ lab computeresources-hci setup

创建hci-aggregate主机集合

[student@workstation ~(architect1-finance)]$ openstack aggregate create hci-aggregate

将加入该主机集合

[student@workstation ~(architect1-finance)]$ openstack aggregate add host hci-aggregate computehci0.overcloud.example.com

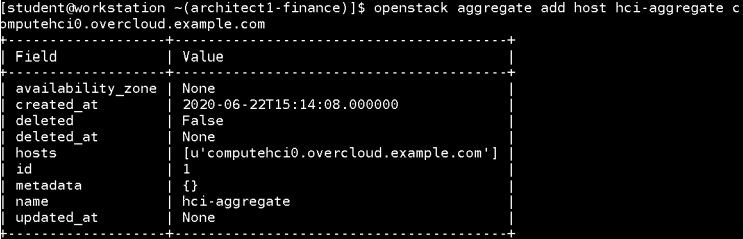

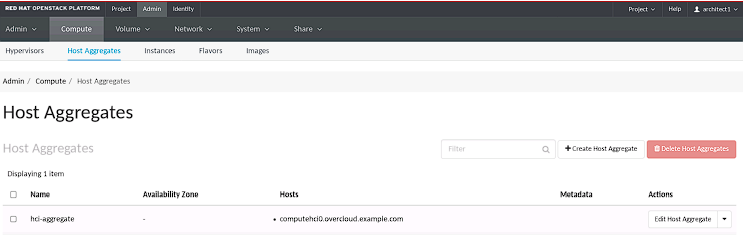

设置主机聚合的元数据computehci=true

[student@workstation ~(architect1-finance)]$ openstack aggregate set --property computehci=true hci-aggregate
[student@workstation ~(architect1-finance)]$ openstack aggregate show hci-aggregate

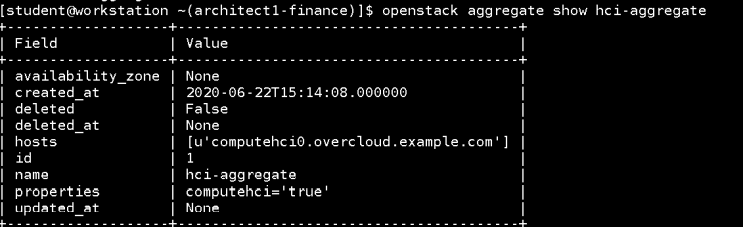

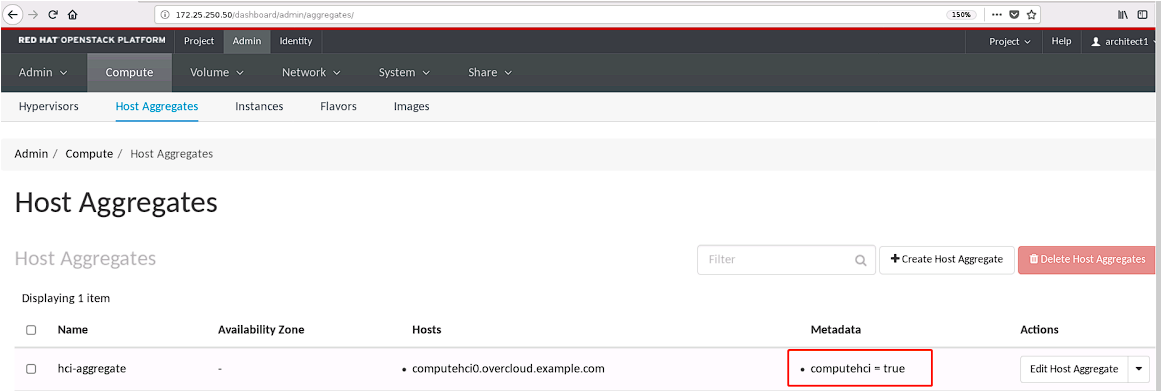

创建flavor

[student@workstation ~(architect1-finance)]$ openstack flavor create --ram 1024 --disk 10 --vcpus 2 --public default-hci

在flavor的元数据中添加相同的标签computehci=‘true’

说明

“主机聚合”需要配合flavor一起使用，同时在flavor中也需要配置相关"标签”，这样通过flavor创建的虚拟机才会选择相关“主机聚合”中的主机

[student@workstation ~(architect1-finance)]$ openstack flavor set default-hci --property computehci='true'
[student@workstation ~(architect1-finance)]$ openstack flavor show default-hci

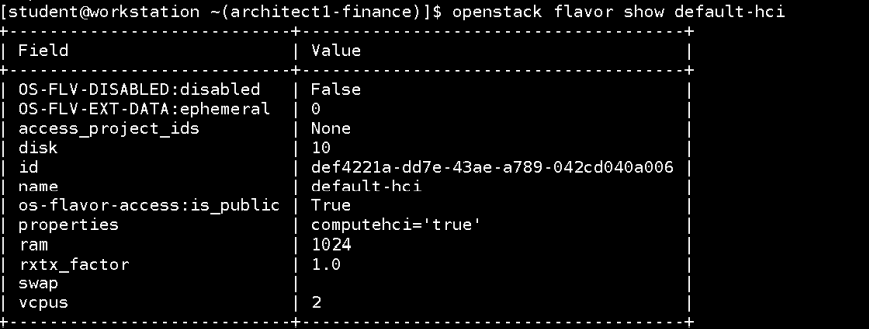

查看镜像

[student@workstation ~(architect1-finance)]$ openstack image list

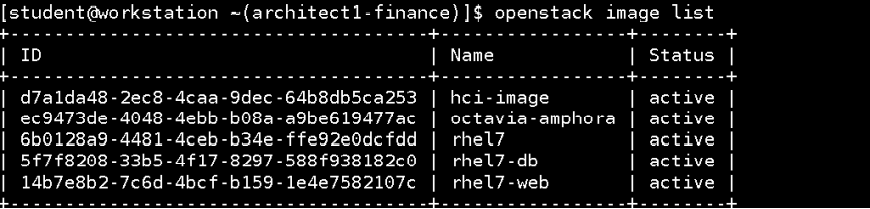

创建云主机

[student@workstation ~(architect1-finance)]$ openstack server create --flavor default-hci --image hci-image --nic net-id=finance-network1 --wait hci-server1
[student@workstation ~(architect1-finance)]$ openstack server show hci-server1

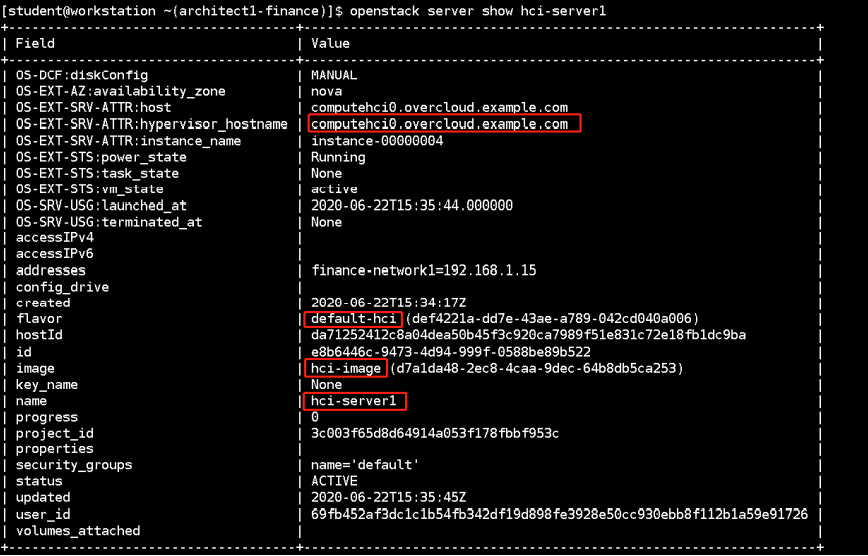

以上说明，该实例被调度创建在了超融合节点上

清除环境

[student@workstation ~(architect1-finance)]$ lab computeresources-hci cleanup

第三节 管理计算节点

练习：云主机热迁移

初始化环境

[student@workstation ~]$ lab computeresources-migrate setup

列出所有的云主机

[student@workstation ~]$ source architect1-finance-rc
[student@workstation ~(architect1-finance)]$ openstack server list

查看所有计算节点上面的服务

[student@workstation ~(architect1-finance)]$ openstack compute service list

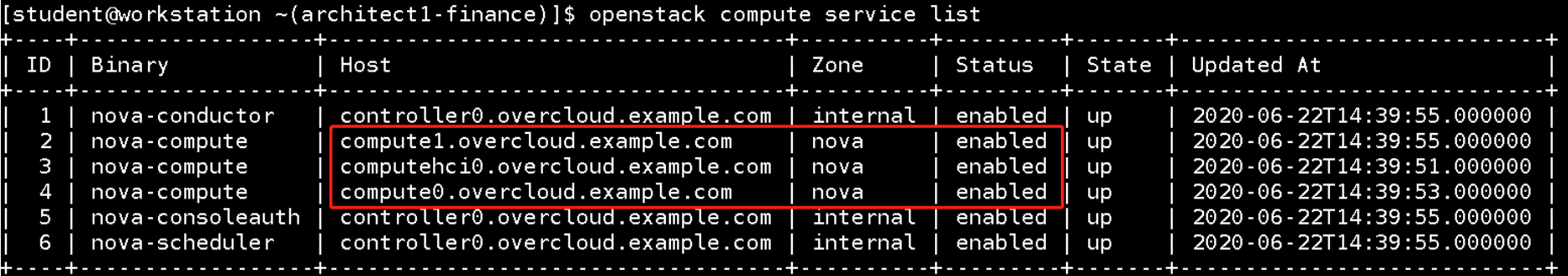

查看指定计算节点上所有项目中的实例列表

[student@workstation ~(architect1-finance)]$ openstack server list --host compute0.overcloud.example.com

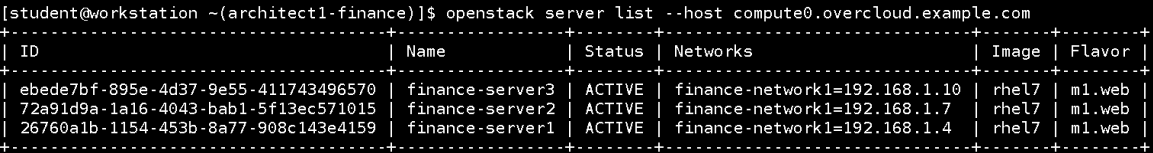

给云主机finance-server1分配浮动ip

[student@workstation ~(architect1-finance)]$ openstack floating ip create provider-datacentre、
[student@workstation ~(architect1-finance)]$ openstack server add floating ip finance-server1 172.25.250.106

实施热迁移，将compute0上的云主机迁移至compute1上

[student@workstation ~(architect1-finance)]$ openstack server migrate finance-server1 --live compute1.overcloud.example.com
[student@workstation ~(architect1-finance)]$ openstack server list --host compute1.overcloud.example.com

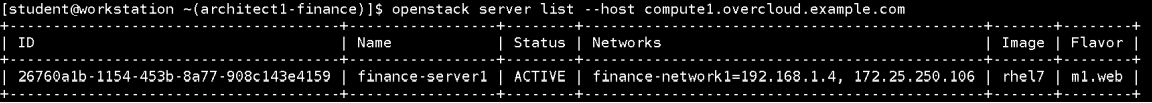

边迁移边测试

[student@workstation ~(architect1-finance)]$ ping 172.25.250.106 PING 172.25.250.106 (172.25.250.106) 56(84) bytes of data.
64 bytes from 172.25.250.106: icmp_seq=1 ttl=63 time=1.58 ms
64 bytes from 172.25.250.106: icmp_seq=2 ttl=63 time=0.716 ms
64 bytes from 172.25.250.106: icmp_seq=3 ttl=63 time=0.526 ms
64 bytes from 172.25.250.106: icmp_seq=35 ttl=63 time=5.88 ms
64 bytes from 172.25.250.106: icmp_seq=40 ttl=63 time=1.16 ms
#可以看到在短暂时间内延迟稍微大一点

将计算节点compute0的nova-compute服务关闭

[student@workstation ~(architect1-finance)]$ openstack compute service set compute0.overcloud.example.com nova-compute --disable

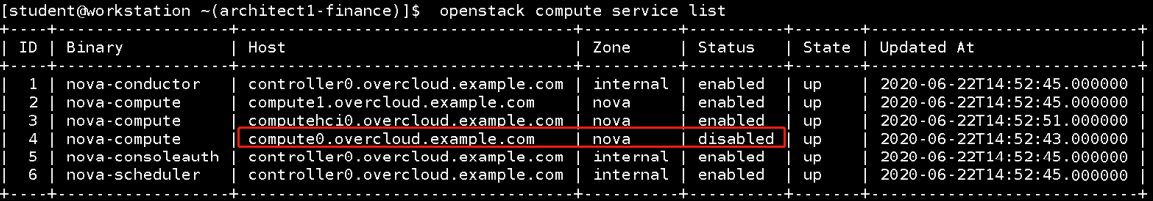

将计算节点compute0上面的所有实例迁移到其他节点

[student@workstation ~(architect1-finance)]$ nova host-evacuate-live compute0

重新开启compute0上的nova-compute服务

[student@workstation ~(architect1-finance)]$ openstack compute service set compute0.overcloud.example.com nova-compute --enable
[student@workstation ~(architect1-finance)]$ openstack compute service list

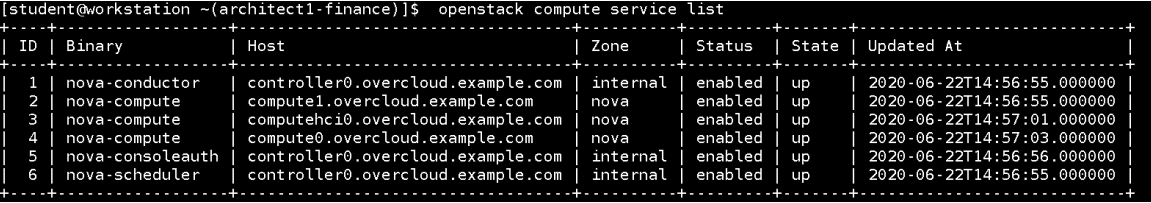

再次将compute1上面的实例迁移至其他计算节点

[student@workstation ~(architect1-finance)]$ nova host-evacuate-live compute1
[student@workstation ~(architect1-finance)]$ openstack server list --host compute0.overcloud.example.com

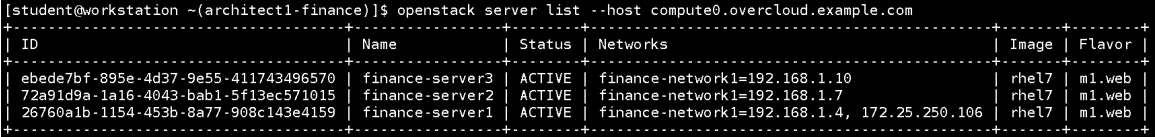

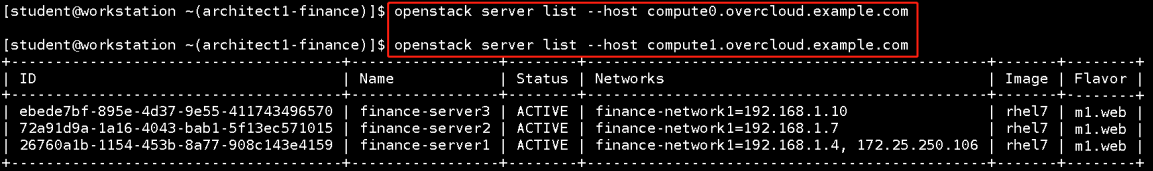

清空环境

[student@workstation ~]$ lab computeresources-migrate cleanup

第八章 自动化云应用

#列出所有支持的模板
[student@workstation ~(developer1-finance)]$ openstack orchestration template version list
+--------------------------------------+------+------------------------------+
| Version                              | Type | Aliases                      |
+--------------------------------------+------+------------------------------+
| AWSTemplateFormatVersion.2010-09-09  | cfn  |                              |
| HeatTemplateFormatVersion.2012-12-12 | cfn  |                              |
| heat_template_version.2013-05-23     | hot  |                              |
| heat_template_version.2014-10-16     | hot  |                              |
| heat_template_version.2015-04-30     | hot  |                              |
| heat_template_version.2015-10-15     | hot  |                              |
| heat_template_version.2016-04-08     | hot  |                              |
| heat_template_version.2016-10-14     | hot  | heat_template_version.newton |
| heat_template_version.2017-02-24     | hot  | heat_template_version.ocata  |
| heat_template_version.2017-09-01     | hot  | heat_template_version.pike   |
| heat_template_version.2018-03-02     | hot  | heat_template_version.queens |
+--------------------------------------+------+------------------------------+

#queens对应osp13;newton对应osp10

[student@workstation ~(developer1-finance)]$ openstack orchestration resource type list
+----------------------------------------------+
| Resource Type                                |
+----------------------------------------------+
| AWS::AutoScaling::AutoScalingGroup           |
| AWS::AutoScaling::LaunchConfiguration        |
| AWS::AutoScaling::ScalingPolicy              |

[student@workstation ~(developer1-finance)]$ openstack orchestration resource type show OS::Nova::Server

练习：heat模板编排

初始化环境

[student@workstation ~]$ lab orchestration-heat-templates setup

编辑模板文件，并创建堆栈

#下载模板
[student@workstation ~]$ wget http://materials.example.com/heat/finance-app1.yaml-final

#编辑变量文件
[student@workstation ~]$ cat environment.yaml
parameters:
  web_image_name: "rhel7-web"
  db_image_name: "rhel7-db"
  web_instance_name: "fianace-web"
  db_instance_name: "fianace-db"
  instance_flavor: "default"
  key_name: "example-keypair"
  public_net: "provider-datacentre"
  private_net: "finance-network1"
  private_subnet: "finance-subnet1"

#试运行
[student@workstation ~(developer1-finance)]$ openstack stack create --environment environment.yaml --template finance-app1.yaml --dry-run -c description finance-app1

#创建堆栈
[student@workstation ~(developer1-finance)]$ openstack stack create --environment environment.yaml --template finance-app1.yaml --wait finance-app1

[student@workstation ~(developer1-finance)]$ openstack stack output list finance-app1
+----------------+---------------------------------------------------------------------------+
| output_key | description
+----------------+---------------------------------------------------------------------------+
| web_private_ip | Private IP address of the web server                                      |
| web_public_ip  | External IP address of the web server                                     |
| website_url    | This URL is the "external" URL that can be used to access the web server. |
|                |                                                                           |
| db_private_ip  | Private IP address of the DB server                                       |
+----------------+---------------------------------------------------------------------------+
[student@workstation ~(developer1-finance)]$ openstack stack output show finance-app1 website_url
+--------------+---------------------------------------------------------------------------+
| Field        | Value                                                                     |
+--------------+---------------------------------------------------------------------------+
| description  | This URL is the "external" URL that can be used to access the web server. |
|              |                                                                           |
| output_key   | website_url                                                               |
| output_value | http://172.25.250.105/index.php                                           |
+--------------+---------------------------------------------------------------------------+
[student@workstation ~(developer1-finance)]$ curl http://172.25.250.105/index.php

清除环境

[student@workstation ~]$ lab orchestration-heat-templates cleanup
